Viper 509u Ultrasonic Bracket for Holden VE/VF or Pontiac G8

1 downloads231 views0 quality score

Print this part

Check the available model and saved setup details before opening your slicer.

Files

4 hosted model files

STL

Material

PETG or ASA for durability and heat resistance

Print time

Slice to calculate

Filament

Slice to calculate

Supports

verify in slicer

Infill

20-30% infill for strength and minimal weight

Difficulty

Not rated — inspect geometry

Vehicle heat

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Confirm orientation, supports, print time, filament use, and printer compatibility. Test-fit before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

Safety/IP review

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

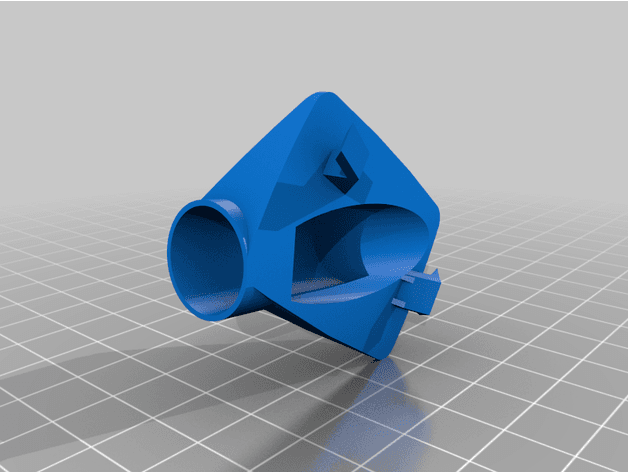

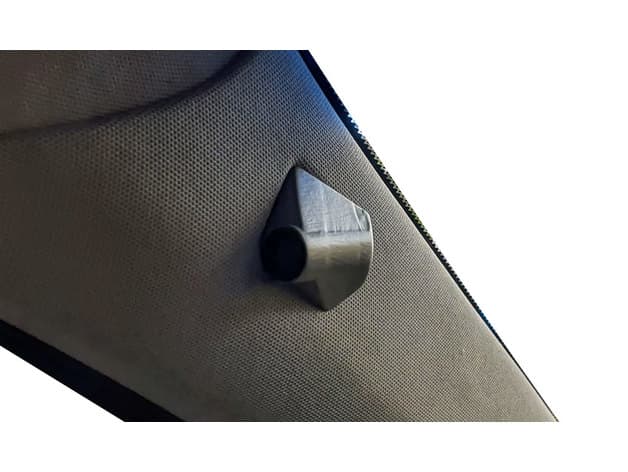

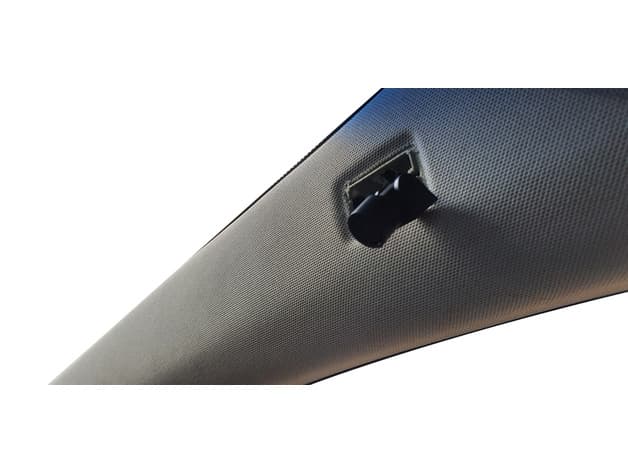

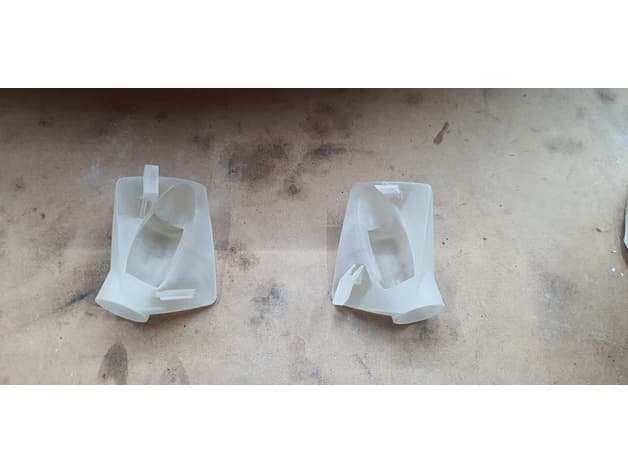

Upon installing the Viper 509u I wasn't too fond of the look and if they were knocked they would have to be readjusted. Along with keeping up the appearance of my vehicle I was wanting something a bit neater then the provided bracket, so I came up with the idea to design a new bracket which made it look factory fit. So as seen, the design I've come up with is to replace the air bag clip on the A pillar. These brackets have been designed to to angle each in the back seats, so with that being said I'm not sure where they would point in a ute. More design information below

Updated Jul 21, 2026

Originally published on thingiverse.com by Josh Laurie (joshl_1995) · License: CC BY
