Volkswagen MK5 Jetta Headlight Dust Cover - image

Files (2)

VW_Headlight_Cap.stl

STL

819.5 KB

VW_Headlight_Cap_v1.1.stl

STL

819.6 KB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Saved filament data plus editable planning inputs for cost and time.

2 model files

Recommended kit

50g

Based on 25% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg PETG / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
PETG filamentAmazon · Affiliate link	Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.	Check price at Amazon
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Exterior

Volkswagen MK5 Jetta Headlight Dust Cover

9 downloads1.1K views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

2 hosted model files

STL

Material start

PETG or ASA for durability in outdoor conditions

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

UV/weather exposure — ASA is the starting point

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Michael Chen

Verified

Description

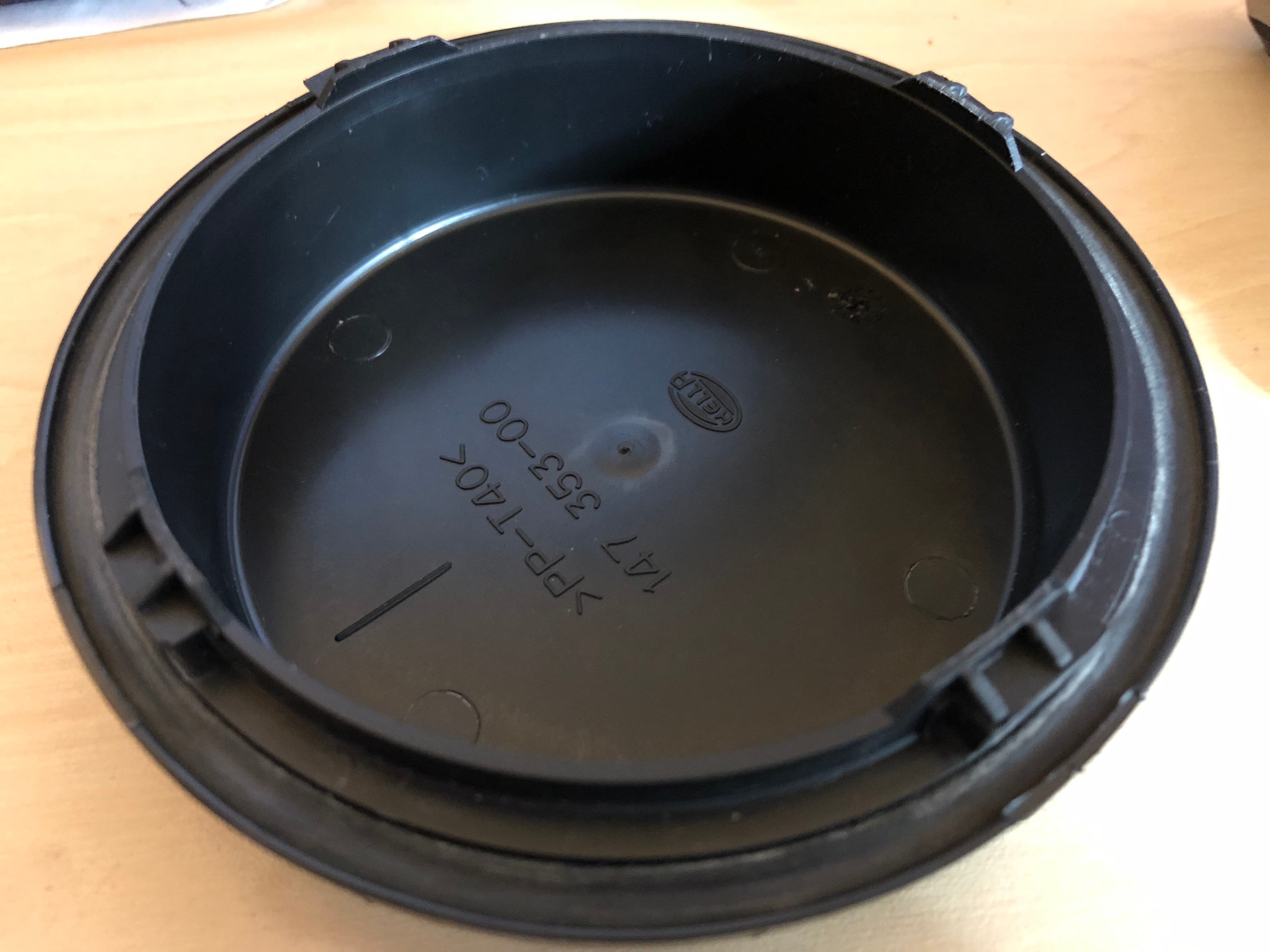

I inherited a Volkswagen Jetta MK5 from a relative and discovered during routine maintenance that one of the headlight dust covers was missing. This allows water to enter the headlight assembly and corrode the electrical connections. After searching high and low for a replacement, and since I was learning FreeCAD, I decided to recreate the part as an exercise. I plan on creating a gasket out of some spray foam to fill the channel around the outer ring for a proper seal. Edit: Added version 1.1 which has a slight angle to the outer wall of the gasket slot. The original design did fit, but I had to exert quite a bit of force to stretch it onto the mouting surface. This version should fit with much less effort. Designed in FreeCAD v0.18, sliced in Cura v3.4.1.

Compatible Cars

Volkswagen Jetta

Published Mar 8, 2026Updated Aug 9, 2026

Originally published on thingiverse.com · License: CC BY
