Volvo Key (V70/S70) 90's

0 downloads217 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG

Saved part guidance

Strength start

20-30% infill for durability

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Michael Chen

Verified

Description

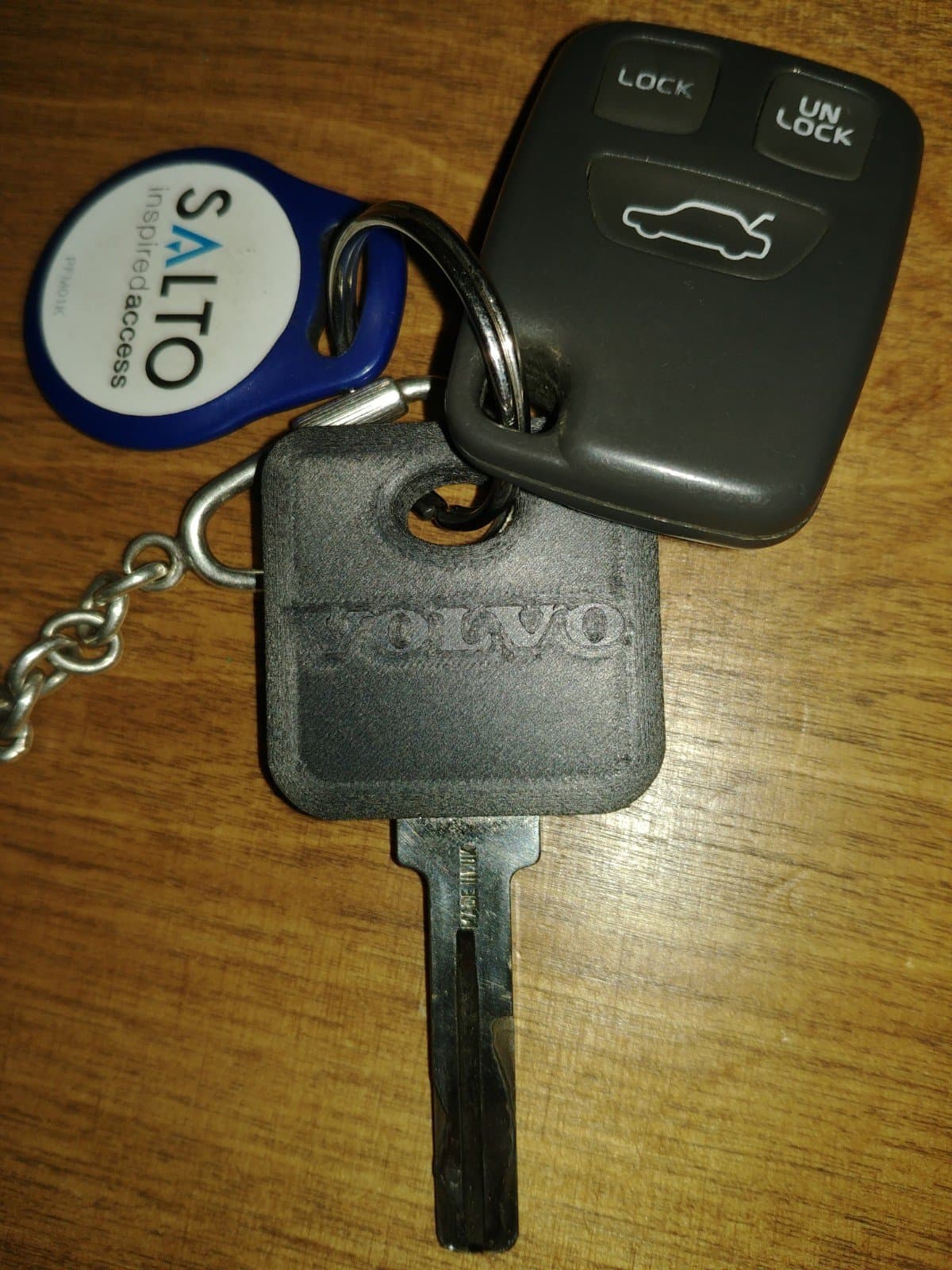

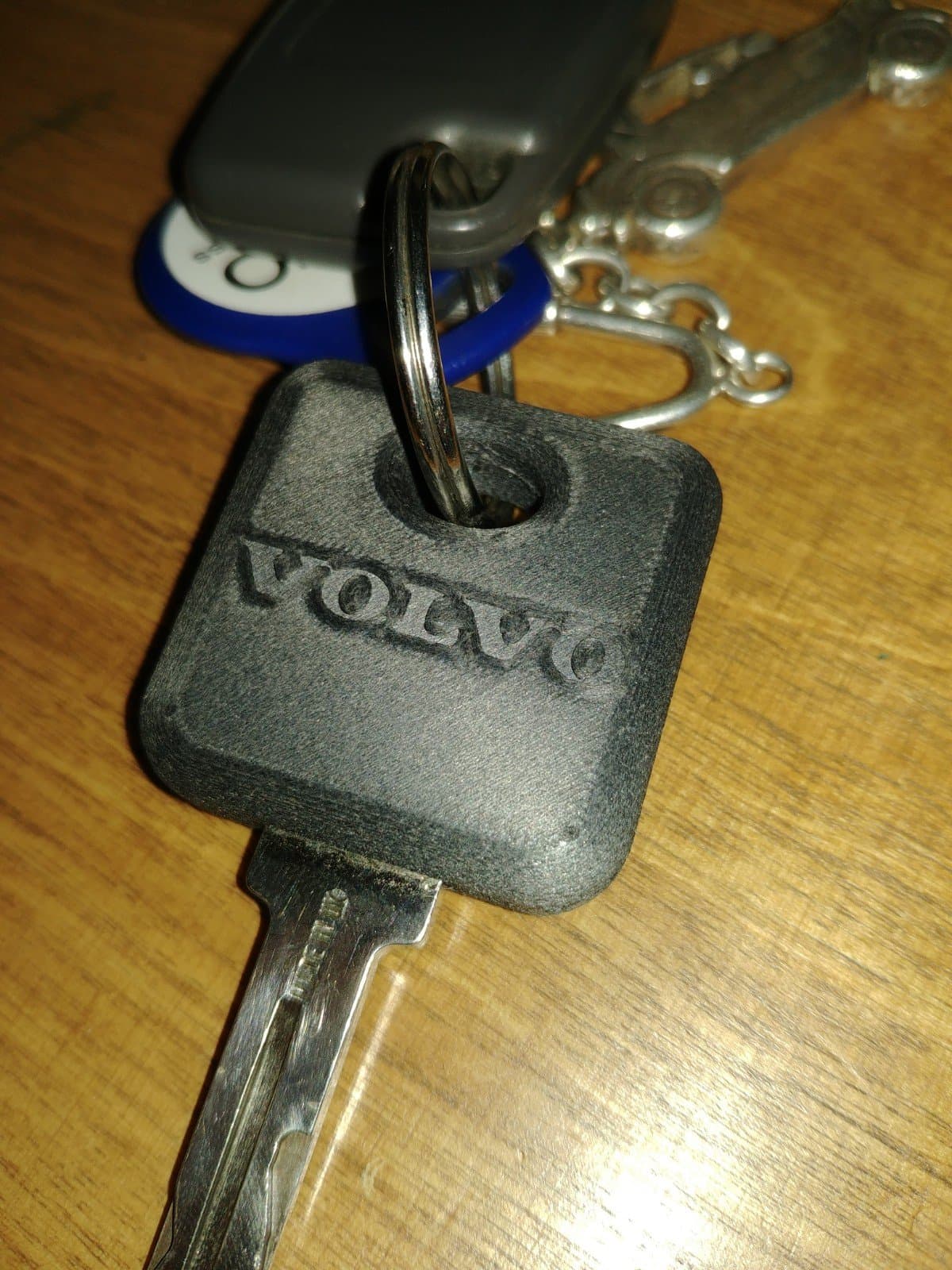

YOU NEED TO SACRIFICE A WORKING VOLVO KEY TO FINISH THIS PROJECT The plastic heads on Volvo keys from the 1990's always get sticky and dirty. So I decided to print a new one aaaand it's better than original :) You have to cut open your old volvo key to extract the transponder for the immobilizer and the key itself. The transponder is very fragile - be careful when cutting into the plastic. You have to pause the print at the layer where the pocket for key is finished, then insert your key and the transponder and resume the print. Set a pause command at the correct layerhight in your slicer to insert the key and transponder.

Compatible Cars

Volvo (all models)

Published Mar 8, 2026Updated Aug 8, 2026

Originally published on thingiverse.com · License: CC BY
