VW Footwell Light Holder

Files (1)

VW_Rear_Footwell_Light_Holder.stl

STL

1.6 MB

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
PETG filamentAmazon · Affiliate link	Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.	Check price at Amazon
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

4 downloads402 views0 quality score

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Endaf Jones (jonese)

Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.

Description

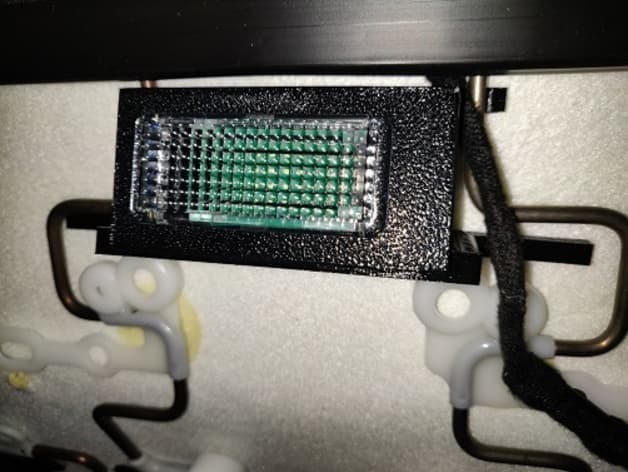

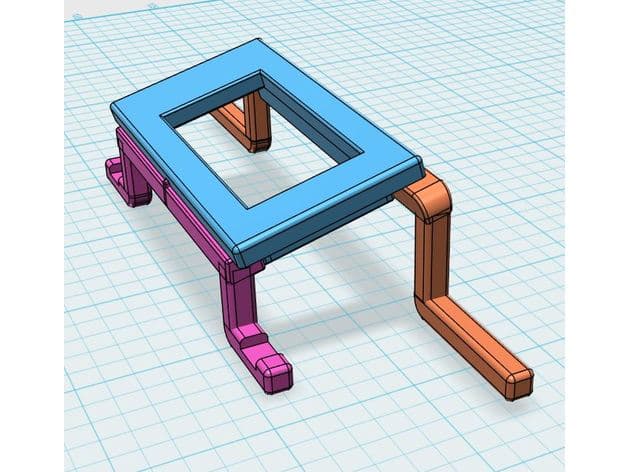

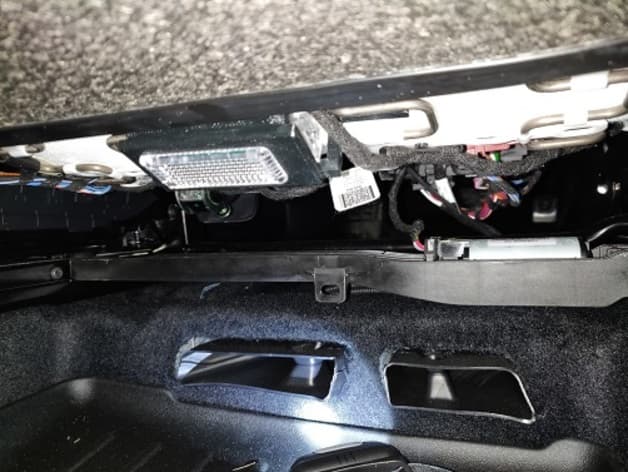

This is a Footwell light holder for VW modern vehicles. This actual application is on a 2020 Tiguan, but other modern VWs could have similar usage. Actual VAG part number is 565.881.547 but this is unavailable in the North America market (I believe this part is primarily for Skoda in Europe). This print closely resembles the functionality of this part while trying to make it easy to print. Update: Looks like the North American part is 4M0.881.547.4PK typically used on Audi's. You will need to print two sets of these (one left and one right). Glue to pieces together as shown. Keep in mind each one will need to be mirrors of each other as the wiring harness will exit in different directions for left and right assembly. The light 5GG.947.409 should snap into the cover and will be removable if needed (just as the OEM front lights do). Slide the whole assembly under the spring frame of the seat and then attach the two larger legs to the spring via tie clips. The lights are available on AliExpress already with wiring harness.
