VW Golf Mk2 to Mk1 seat handle conversion part

0 downloads481 views0 quality score

License & use

CC BY-NC-ND

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Marvin Pound (MarvinPound)

Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.

Description

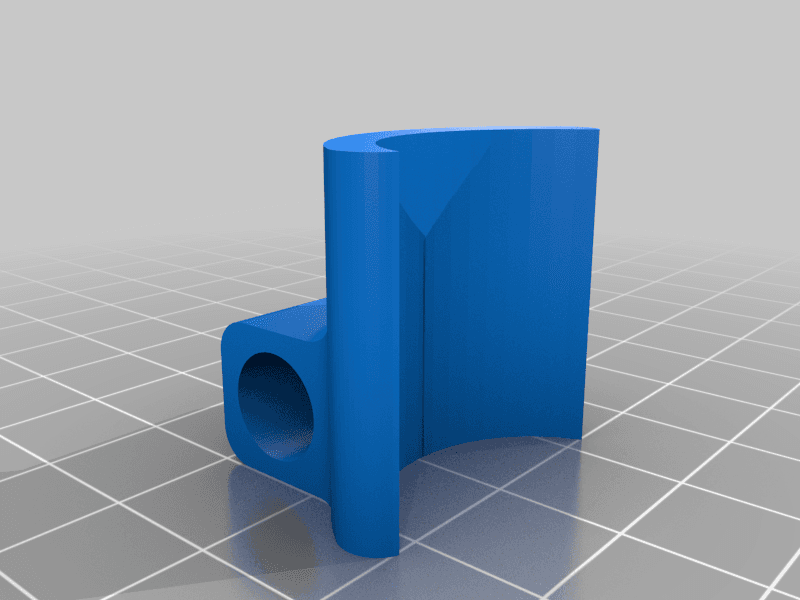

This is to adapt Mk2 seats to golf Mk1. Mk2 seats have screw holes to fit the Mk1 handle on the other side (as required), but there is no welded-on retainer for the 8mm rod of the adjuster handle. Without a retainer it's not possible to fit or adapt the Mk1 spring and handle. My solution is to make a 3D-printed part that can be clipped onto the other side of the seat using a jubiliee (hose) clip. This supports the end of the rod in the correct position for assembling all the MK1 handle parts to the Mk2 seats.
