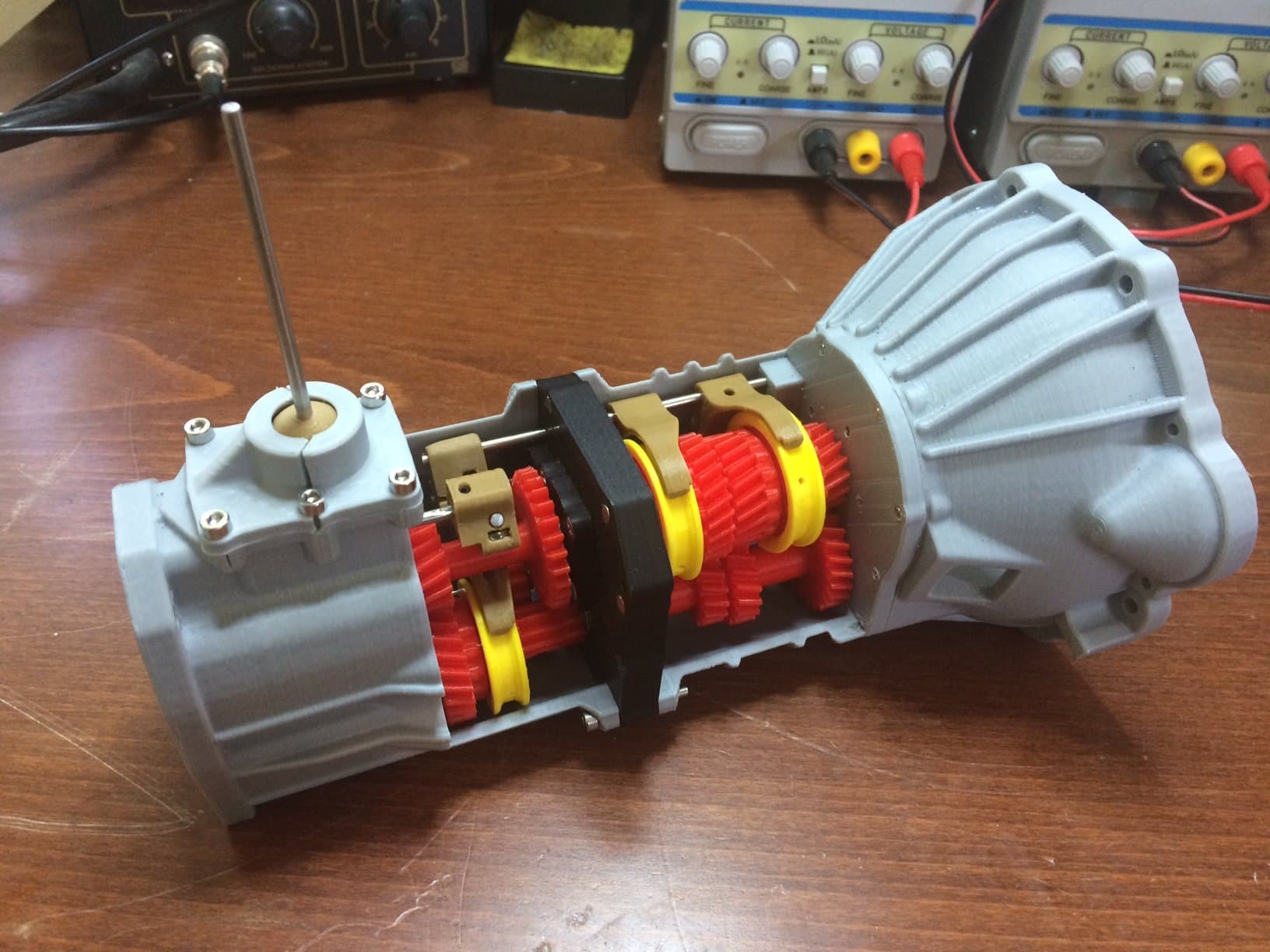

Working 5 speed transmission model for Toyota 22RE engine
Print this part
Use the part context as a starting point, then confirm geometry-dependent values in your slicer.
Files
30 hosted model files
STL
Material start
PETG or ASA for durability
Saved part guidance
Strength start
20-30% infill for strength and minimal weight
Saved part guidance
Orientation / supports
Likely not needed
Exact totals
50 g · 2 hours
Saved estimate
Vehicle exposure
Engine-bay exposure — use rated material or OEM
Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.
License & use
The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
Michael ChenDescription

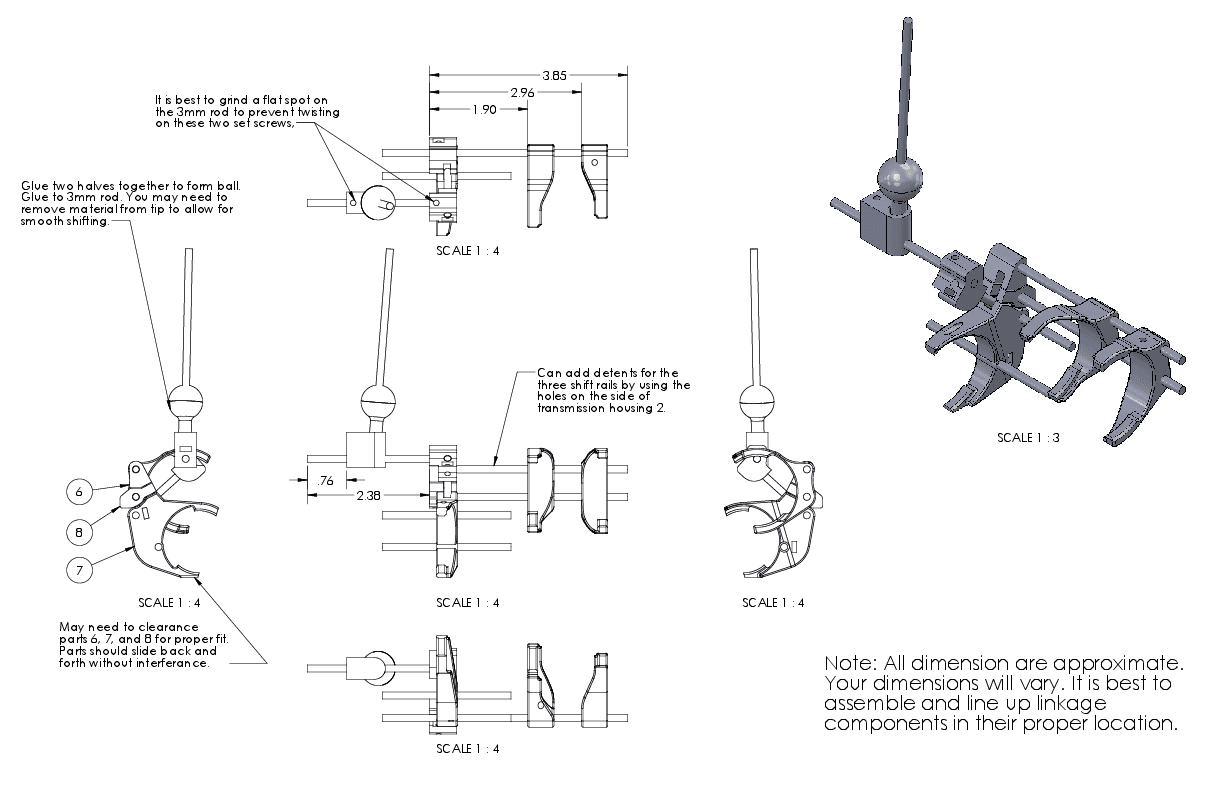

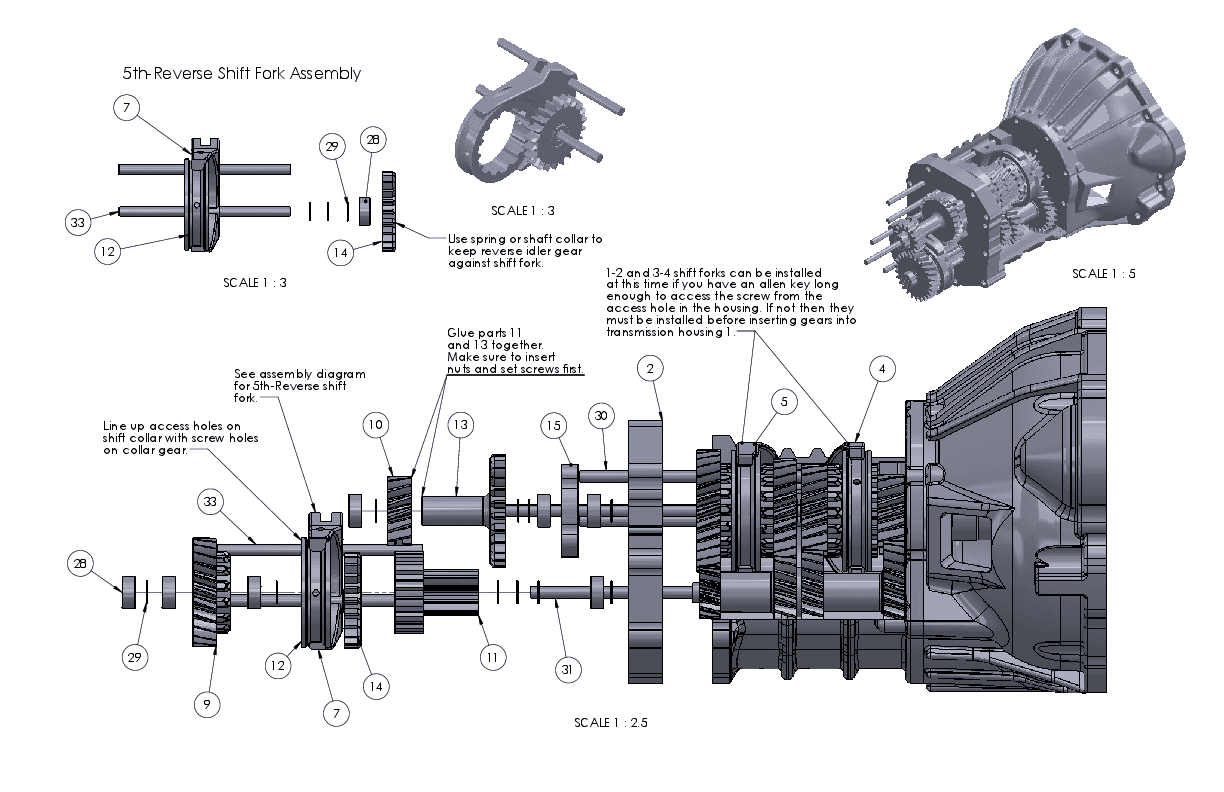

All my models are printed on a Prusa i3 kit. You can find the one I use by clicking the link below. You can get 15% off by using code "GBTE" This is the 5 speed transmission that comes bolted to the back of a 22RE. This is the 4WD version of the transmission so it has a mounting surface to bolt a transfer case to. The transfer case will be the next thing I will upload Fully working. All 5 speeds plus reverse. It uses a good amount of 3mm rod and 623zz bearings. M2.5 x 5mm set screws and nuts were used due to the small size of some of the parts. Shift linkage.stl file updated for more clearance. The old one will still work you just might have to modify it, Transmission housing cover 1 had a problem with the source file not laying flat. New file has been uploaded.
Compatible Cars
Originally published on thingiverse.com · License: CC BY
