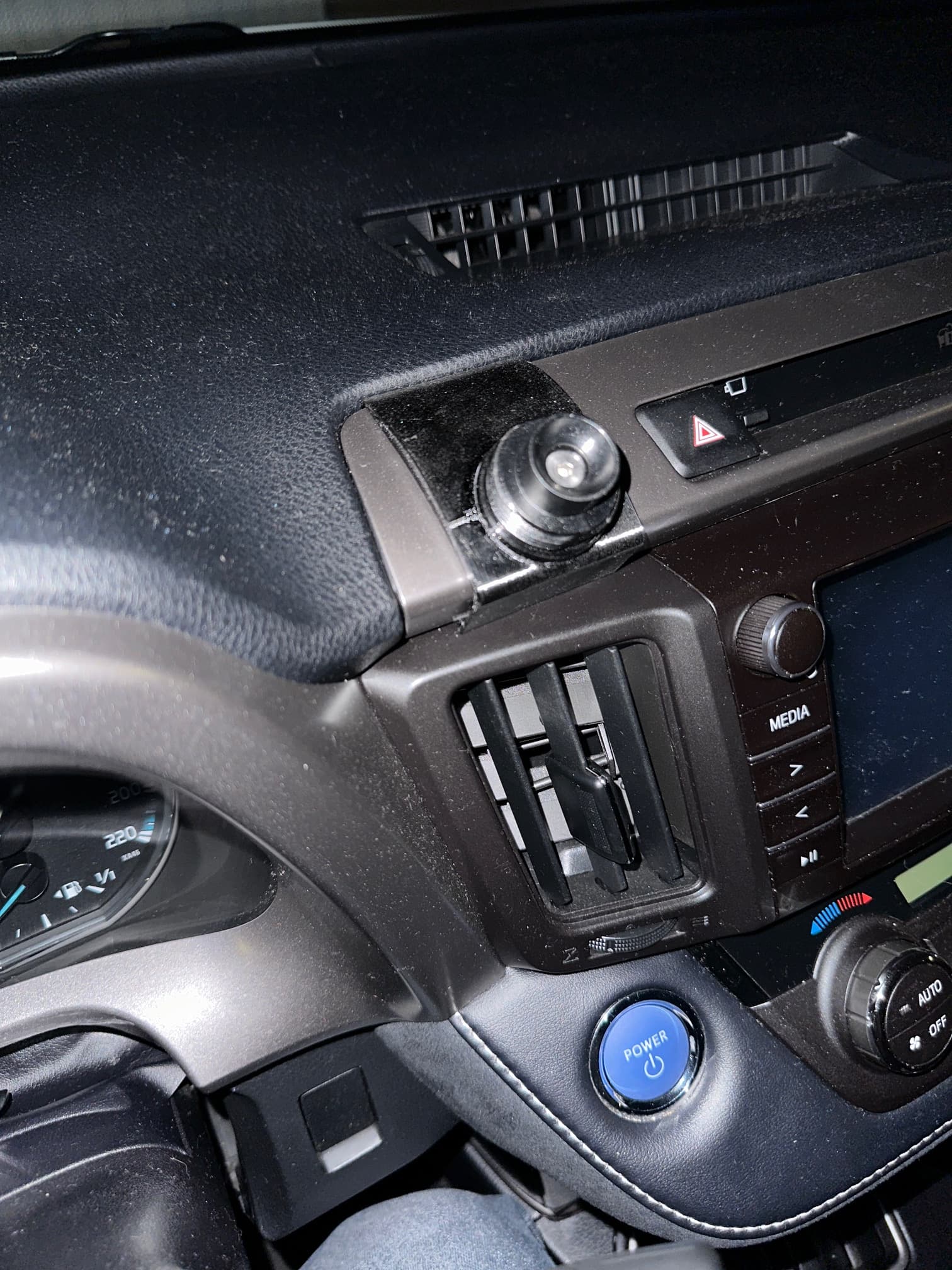

2014 Toyota Rav4 dashboard trim phone mount, Quadlock compatible

0 downloads26 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG

Saved part guidance

Strength start

20-30% infill for durability, with 2-3 walls for strength

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

High cabin heat — validate PETG or choose ASA/ABS

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

Public Domain

Commercial use allowed

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

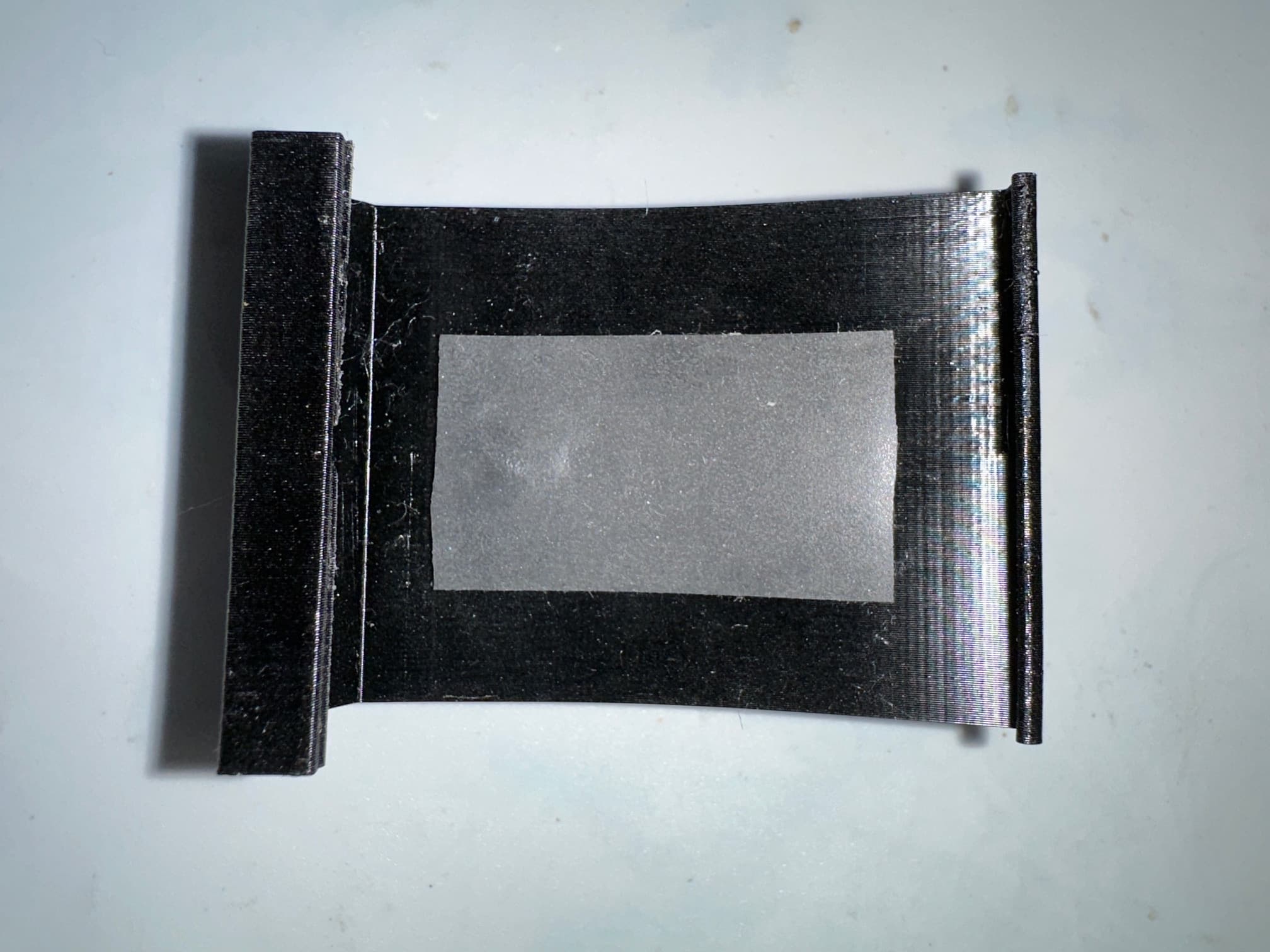

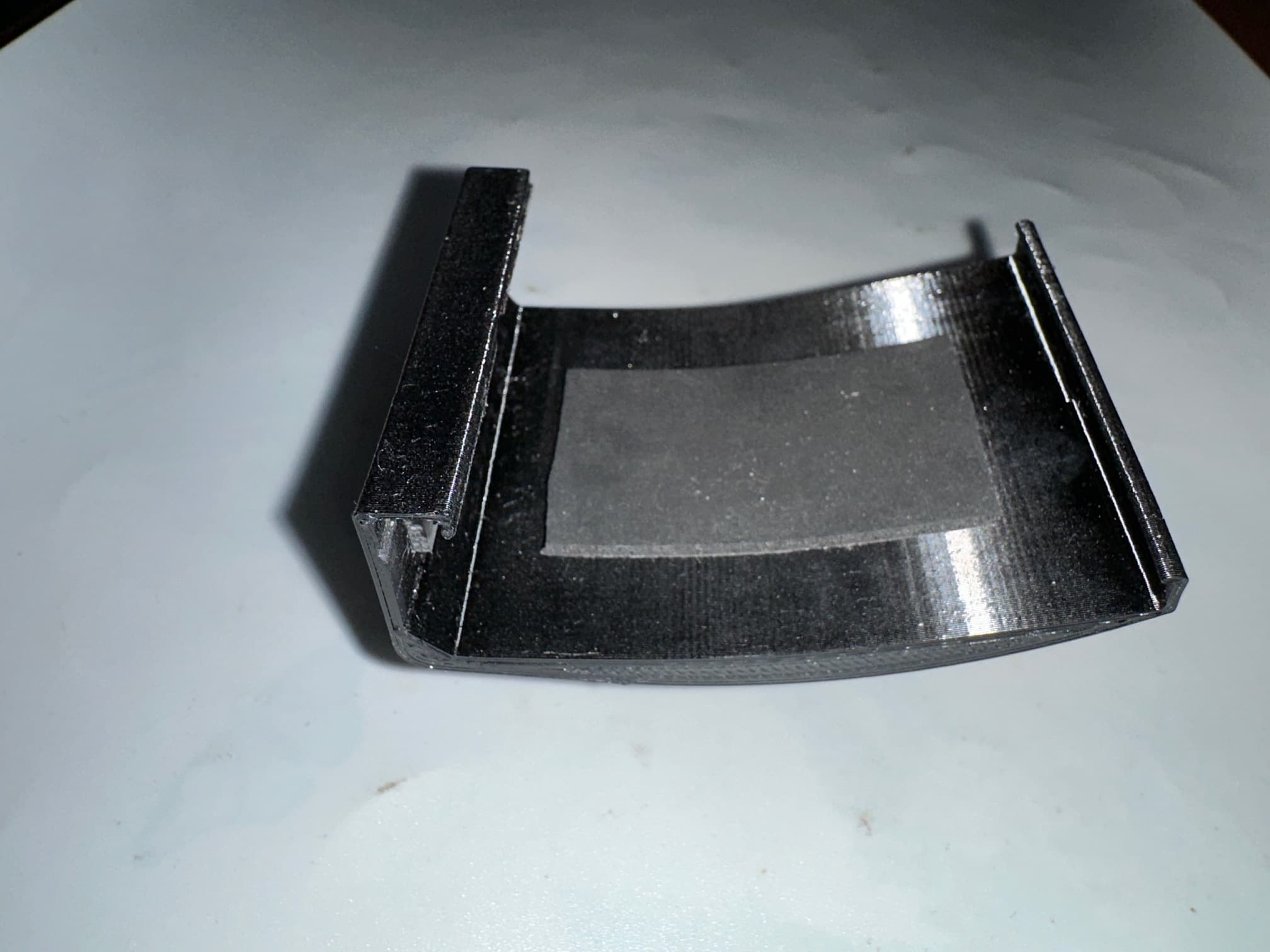

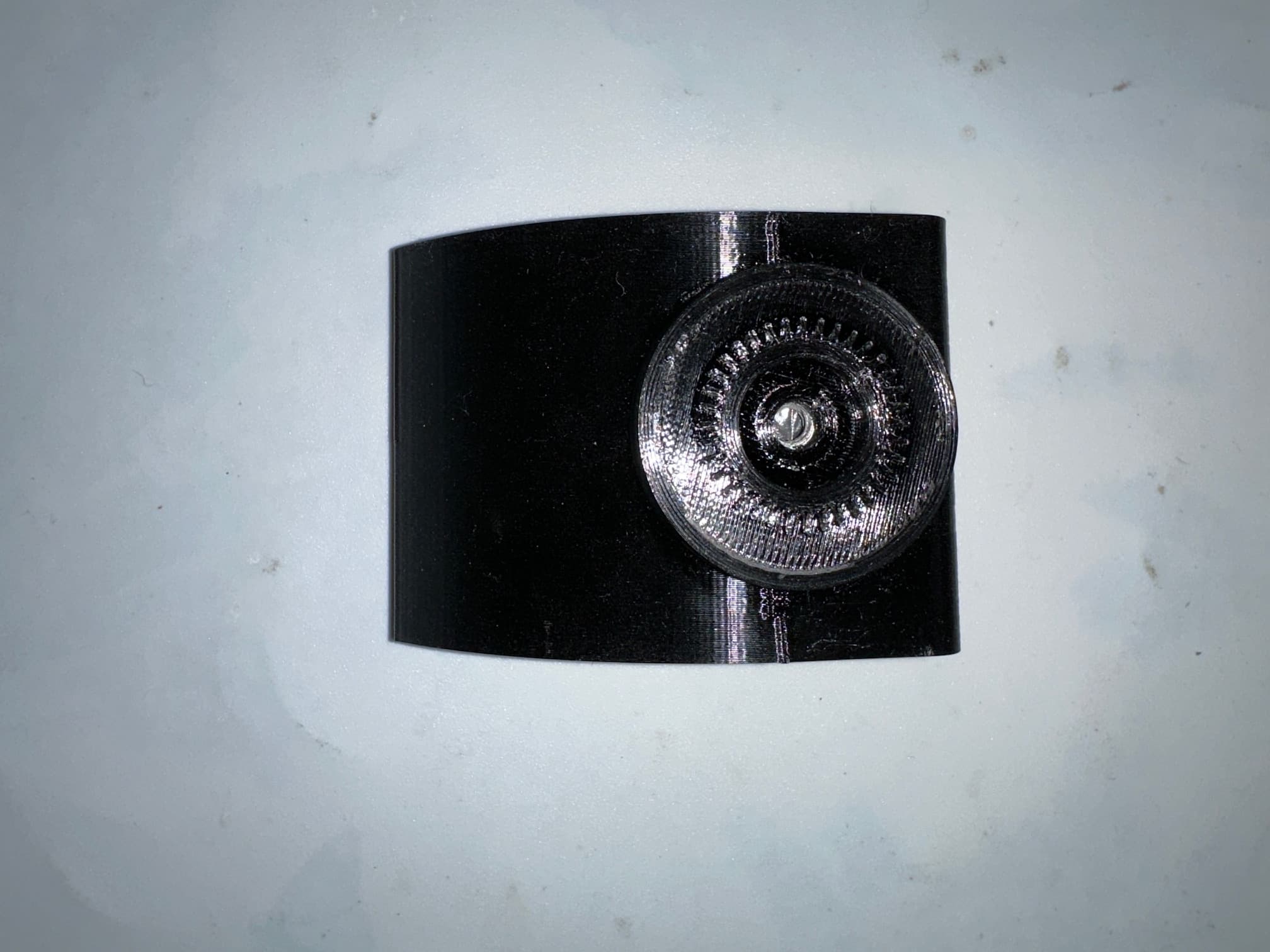

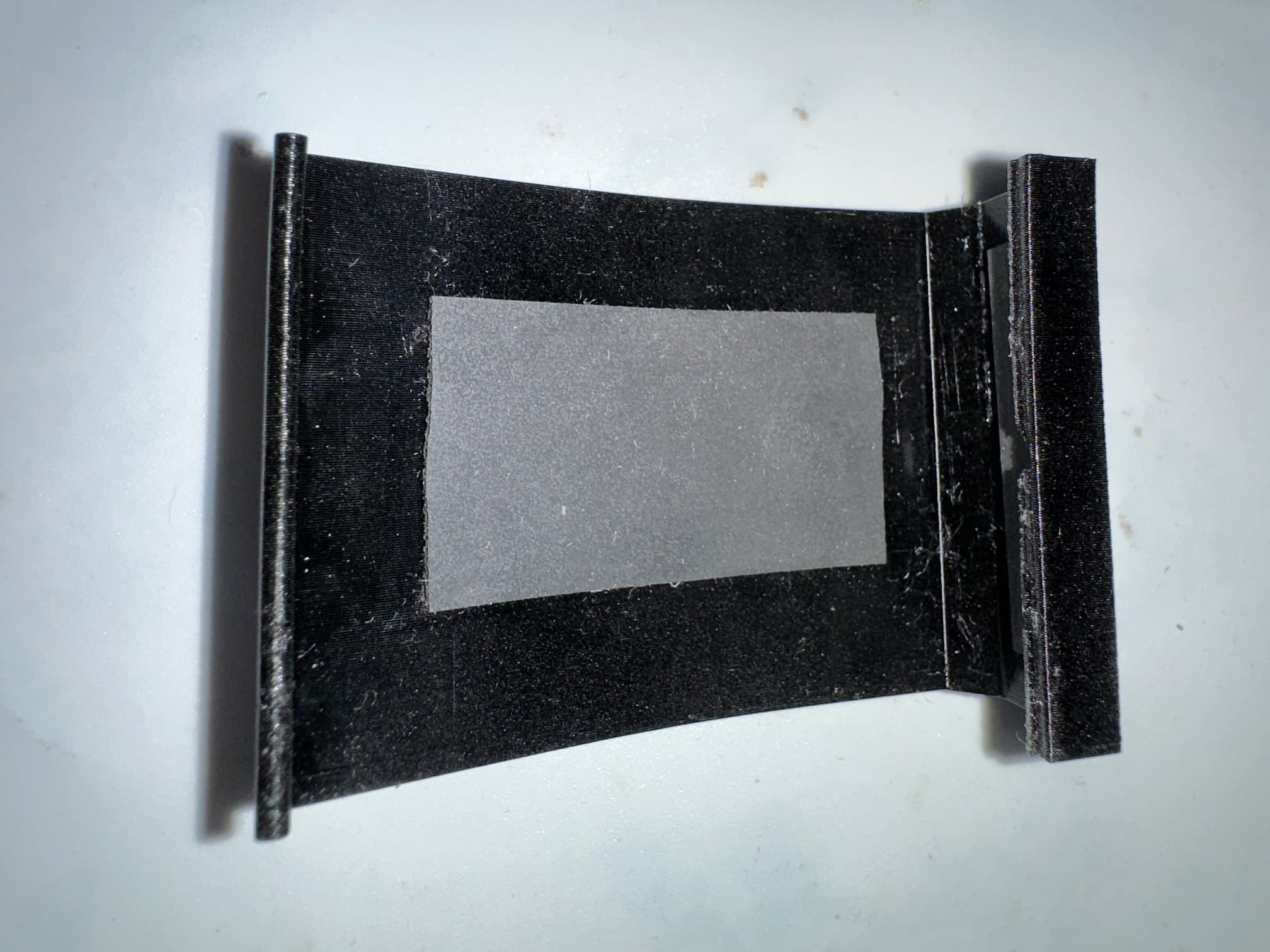

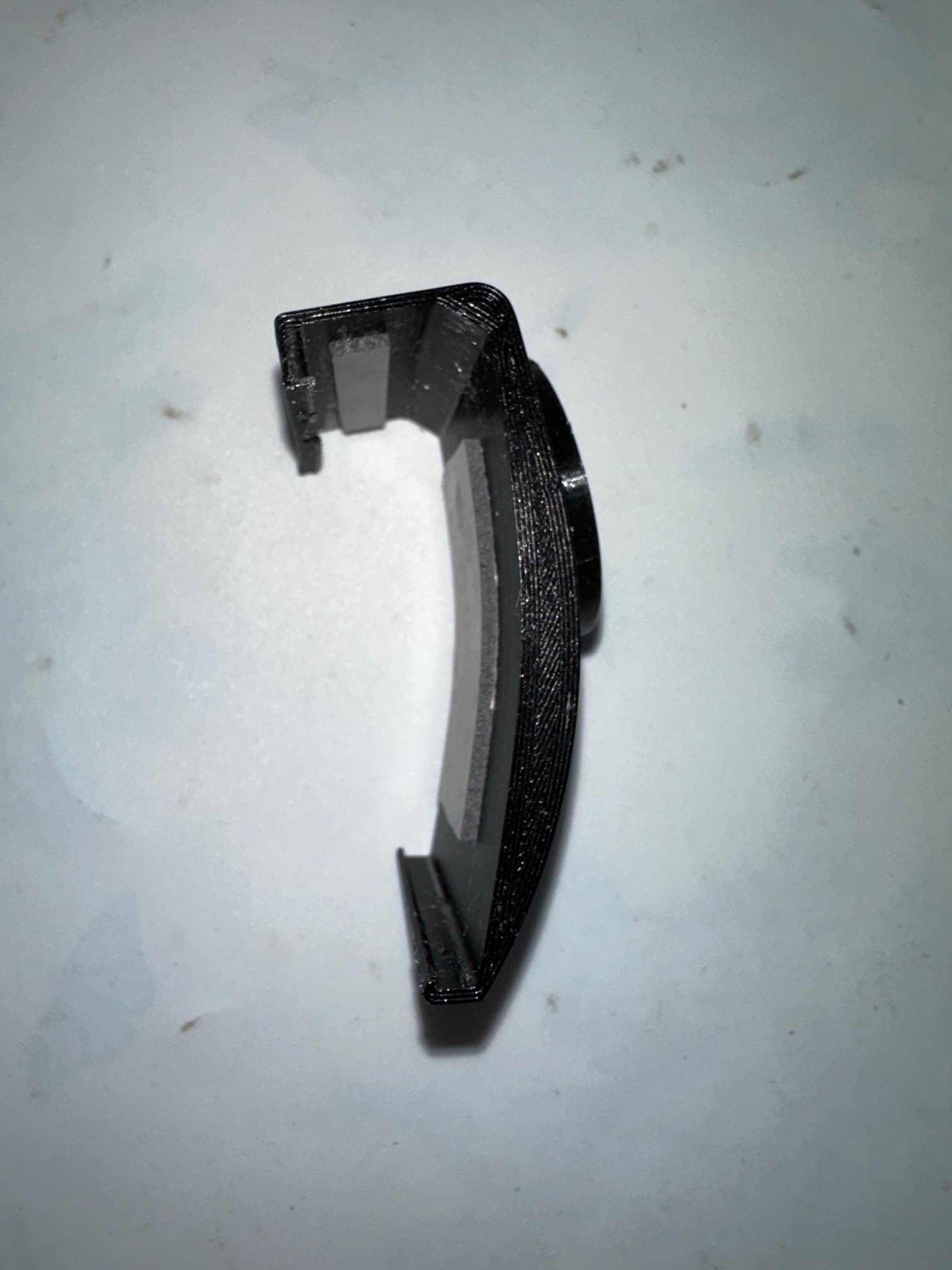

To complete one mount You will need: rav4-phone-holder-v4_quadlock (one piece, I do not recommend to print this due to the lost details of the splined portion which is the interface for the Quadlock system). or: rav4-phone-holder-v4_base or rav4-phone-holder-v4 with hook AND rav4-phone-holder-v4 Splined part, these pieces You need to glue together, the 3 holes are for pieces of filament to make the bond a bit stonger. Additional hardware: M5 nut Foam strip on bottom 3-4 mm thick to avoid scratches and rattling on the trim piece. Note: I included the rest of the system just in case. The “top” and "base for retainer" pieces are not compatible with the original product, only the splines are the same (or close enough). If You want to use the “retainer” piece, You should find or fabricate a spring for that for example from a piece of steel wire. Preinted from eSun Black PETG.
