40oz Water Bottle Cup Holder for Subaru Crosstrek/STI/WRX - image

Files (1)

40oz_Subaru_CupHolder.stl

STL

958.1 KB

Print plan

Exact totals not supplied

Print setup plan

Useful setup guidance without pretending STL byte size can predict filament, cost, or print time.

1 model file

Material plan

PETG / ASA

Published material guidance; still check heat, UV, load, and printer compatibility.

Starting setup

25% infill

A planning starting point only; wall count, orientation, and geometry often matter more than infill.

Final totals

Confirm in slicer

Slice the selected model with your final material, orientation, walls, and supports.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
PETG filamentAmazon · Affiliate link	Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.	Check price at Amazon
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

40oz Water Bottle Cup Holder for Subaru Crosstrek/STI/WRX

0 downloads4 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA

Saved part guidance

Strength start

20-30% infill for durability and weight balance

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

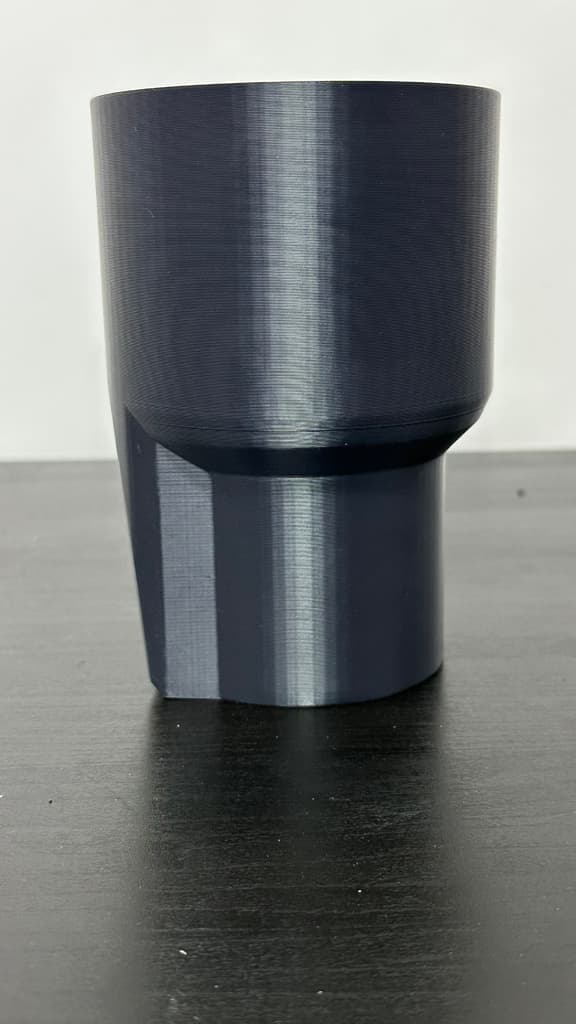

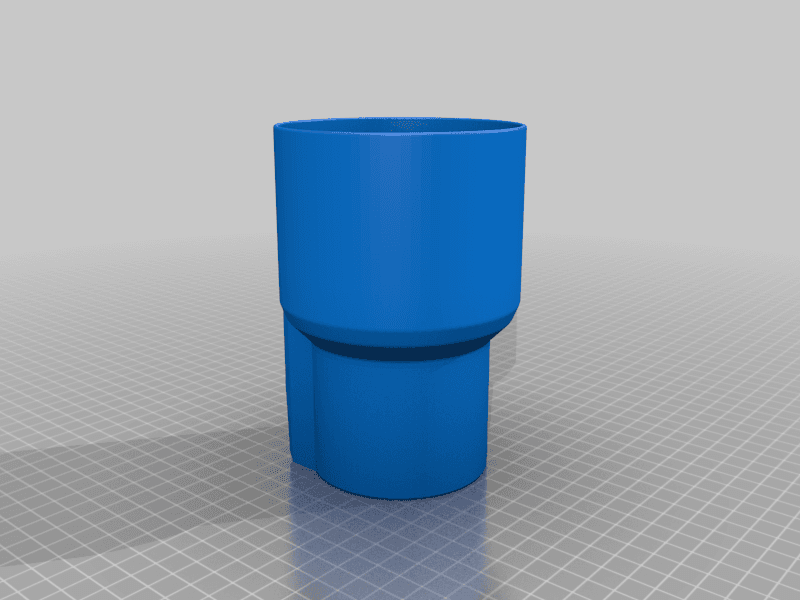

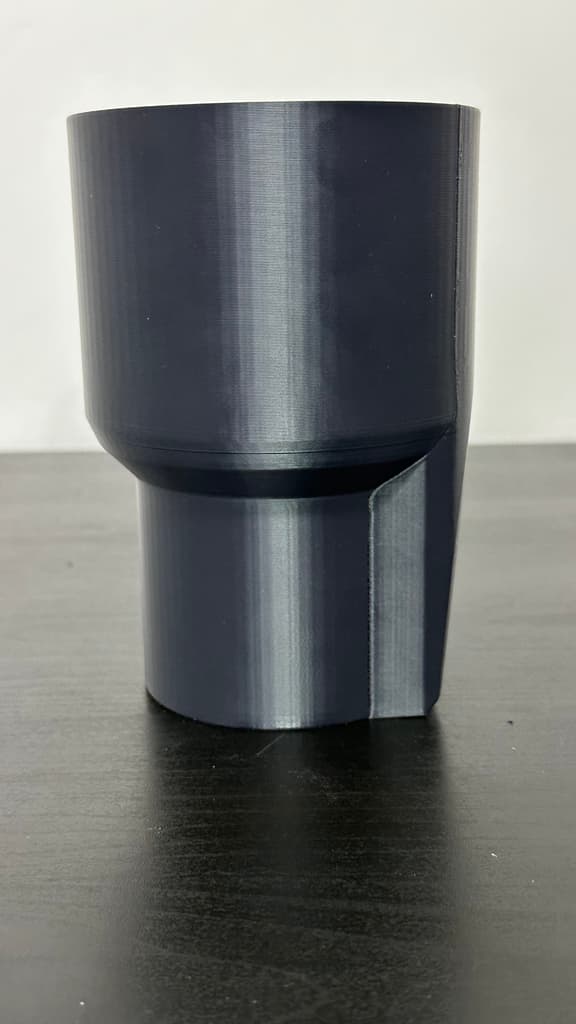

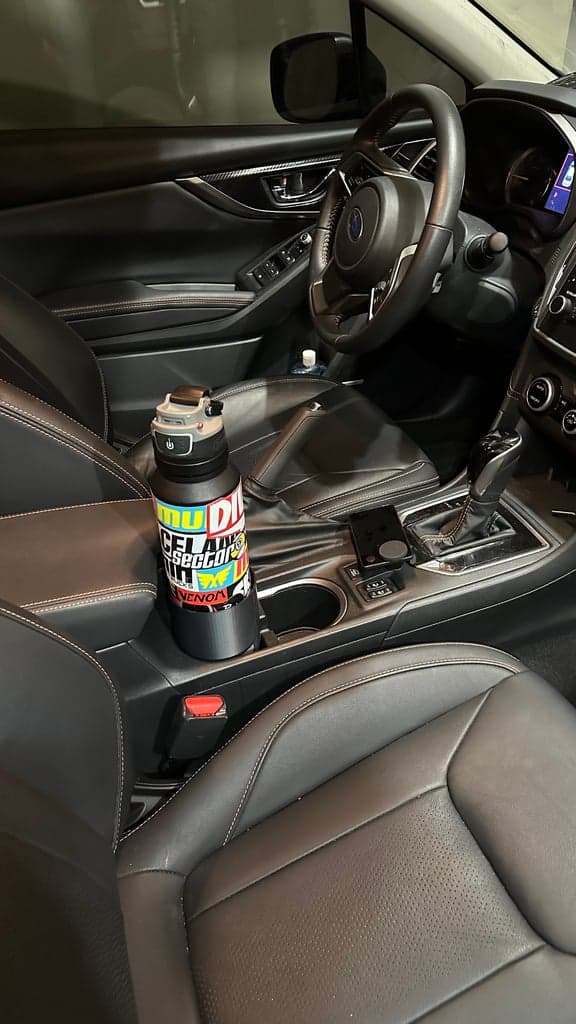

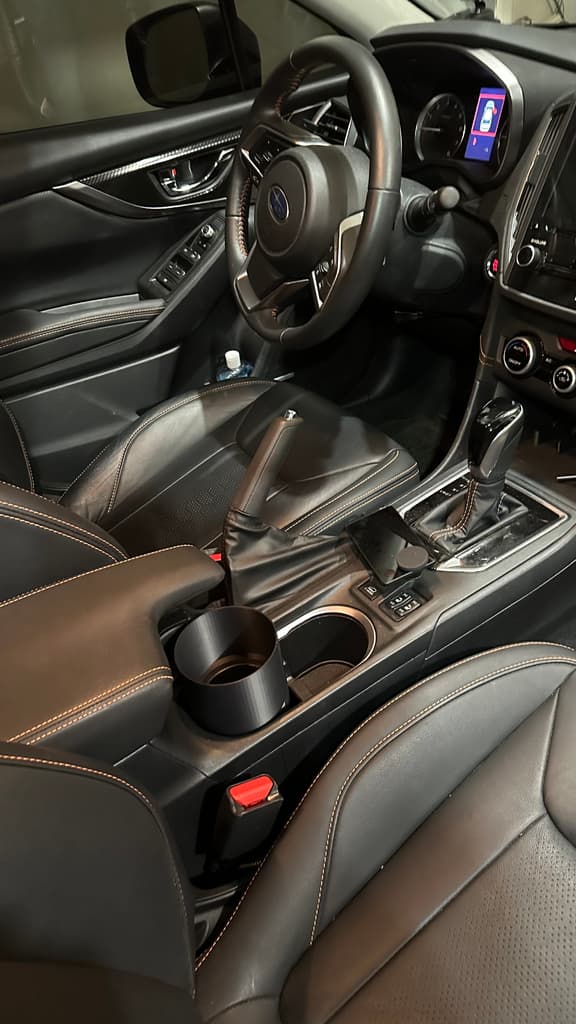

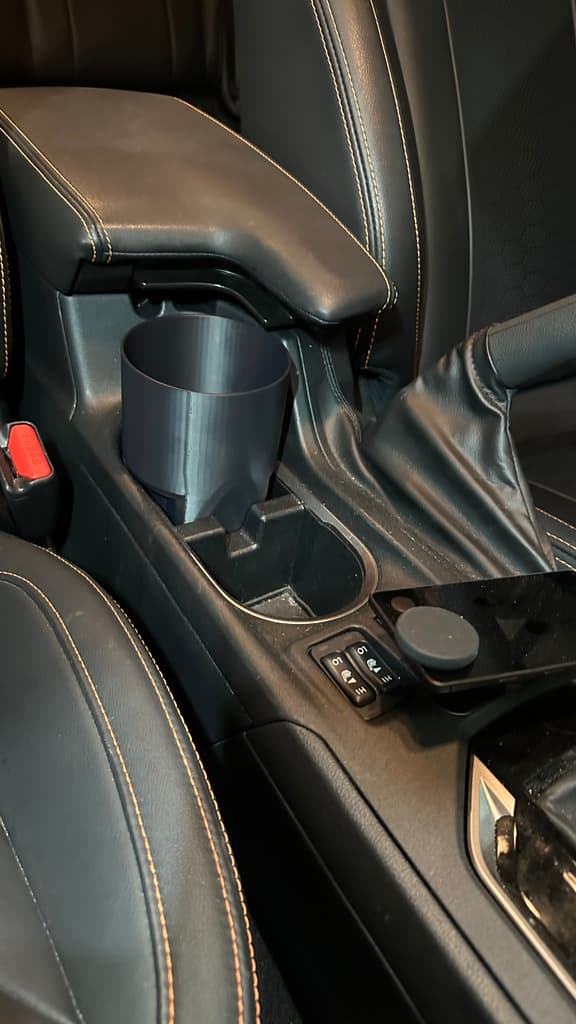

This is a remixed model of the "2019 Subaru Crosstrek_40 oz Water Bottle Holder" made by tomecar. The goal of this remix was to reduce overhang angles to a max of 45º and to smooth out the overall geometry and appearance. Compatibility I have not had an opportunity to test the compatibility on anything other than a 2019 Crosstrek. The other models listed use the same cup holder mat (92177AG170) leading me to believe that the cup holders they are paired with would have very similar if not identical dimensions and clearance. Here is a list of compatible models/years/trims that I got off of Subaru's website: Subaru Crosstrek 2.0L 5MT Premium 2016, 2017 Subaru Crosstrek 2.0L CVT Premium 2016, 2017 Subaru Crosstrek 2.0L HYBRID CVT Premium 2016 Subaru STI 2.5L TURBO 6MT Base 2015, 2016, 2017, 2018, 2019, 2020, 2021 Subaru STI 2.5L TURBO 6MT LIMITED 2015, 2016, 2017, 2018, 2019, 2020, 2021 Subaru STI 2.5L TURBO 6MT Premium 2018, 2019, 2020, 2021 Subaru STI 2.5L TURBO 6MT Sport SEDAN 2012, 2013, 2014 Subaru STI 2.5L TURBO 6MT TYPE RA 2018 Subaru STI 2.5L TURBO 6MT WAGON 2008, 2009, 2010, 2012, 2013, 2014 Subaru WRX 2.0L 6MT Base 2015, 2016, 2017, 2018, 2019, 2020, 2021 Subaru WRX 2.0L 6MT Limited 2015, 2016, 2017, 2018, 2019, 2020, 2021 Subaru WRX 2.0L 6MT Premium 2015, 2016, 2017, 2018, 2019, 2020, 2021 Subaru WRX 2.0L 6MT PREMIUM HK 2017 Subaru WRX 2.0L CVT Base 2015, 2016, 2019 Subaru WRX 2.0L CVT Limited 2015, 2016, 2017, 2018, 2019, 2020 Subaru WRX 2.0L CVT Limited w/EyeSight 2016, 2017 Subaru WRX 2.0L CVT LIMITED WITH LIP ES 2018, 2019, 2020, 2021 Subaru WRX 2.0L CVT Premium 2015, 2016, 2017, 2018 Subaru WRX 2.0L CVT PREMIUM WITH LIP ES 2019, 2020, 2021 Subaru WRX 2.5L TURBO 6MT S209 2019 Print Settings Printer: X1-Carbon Rafts: No Supports: No Resolution: 0.3mm Layer Height / 0.6mm Hardened Steel Nozzle Infill: 25% Support Cubic Filament: Polymaker ASA (Scaled to 100.80% to compensate for ASA shrinkage) Notes: Printing this model took less than 2hr @0.30mm layer height. I recommend printing in heat resistant filaments. I personally chose to use ASA due to it's temperature tolerances and UV resistance. I believe PETG would also be sufficient. I've included the.step file for this model which should hopefully make it easy to adjust any dimensions if needed. The unaltered dimensions of the model are as follows: Upper half: Outer Diameter: 100mm Inner Diameter: 95mm Height: ~80mm Lower half: Outer Diameter: 75mm Inner Diameter: 70mm Width of Flat Side: 65mm Height: ~60mm Model overall size: 100mm x 145mm.
