Air Filter Adapter for BMW vehicles

0 downloads72 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA for durability in a hot car environment

Saved part guidance

Strength start

1.5mm walls with a moderate infill density for strength and weight balance

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

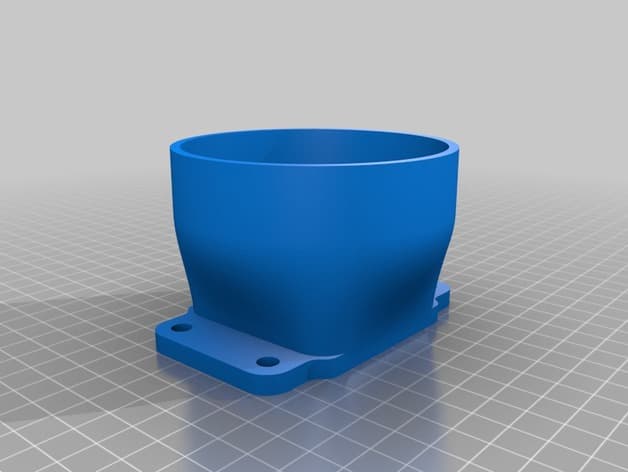

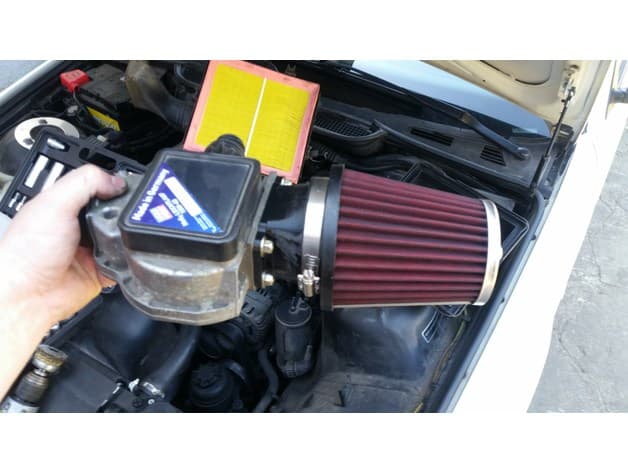

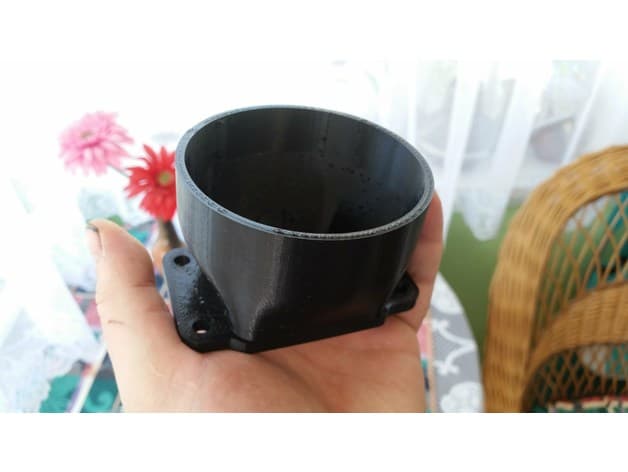

I have found spare conical Air filter in garage. So I want to give it a try on my 316i. Adapters from ebay were poor quality with sharp transitions. And smooth variants vere expensive. Not to mension that my filter is 90mm and adapters were only 76mm. So I started cad and this is a result. I did 76mm a90mm variants of adapter. I have made it for E36 316i but it should fit 318i. And if informations I have found are correct then it should fit Mazda RX7 FC and Mazda MX-5 NA. Mine is printed it from PetG (and I recomend to use this material) with walls 1,5mm and result is pretty strong. Note: This is not a copy of existing BMW part and no intelectual property of BMW has been used during designing this part. // As Ebay seller jdenton1977 (USA) broke Creative Commons - Attribution licence, used my photo without permission and sold this design overpriced (24usd+shipping), I am moving this part under Creative Commons - Attribution, Non commercial. // Another Ebay design and photo thief. robesim0 (Italy) // Ebay design thief no.3: 3dprintsnmore (USA).
