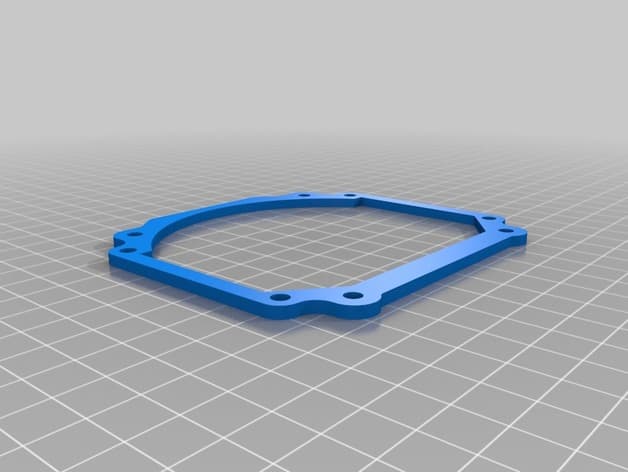

Audi A4 Valeo Headlight Projector Bracket (B6) - image

Files (1)

Valeo_B6A4_Bracket_revA.stl

STL

80.6 KB

Print plan

Exact totals not supplied

Print setup plan

Useful setup guidance without pretending STL byte size can predict filament, cost, or print time.

1 model file

Material plan

PETG / ASA

Published material guidance; still check heat, UV, load, and printer compatibility.

Starting setup

25% infill

A planning starting point only; wall count, orientation, and geometry often matter more than infill.

Final totals

Confirm in slicer

Slice the selected model with your final material, orientation, walls, and supports.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
PETG filamentAmazon · Affiliate link	Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.	Check price at Amazon
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Light Covers

Audi A4 Valeo Headlight Projector Bracket (B6)

1 downloads141 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for heat resistance and dimensional stability

Saved part guidance

Strength start

20-30% infill for sufficient stiffness

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

UV/weather exposure — ASA is the starting point

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

A common issue with the projectors in OEM Valeo Bixenon housings fitted to B6 A4's is that the reflector bowl can become scorched which results in diminished light output. Instead of replacing the whole headlight housing, only to have the issue reoccur, one can use this bracket to replace the projector itself with Koito Q5-r Replica projectors or similar D1S bixenon projectors. This also allows you to retain the original ballast and bulb type (D1S) as well, to help keep cost down. This modification is outlined in this Audizine thread The credit for the original bracket goes to the OP of the thread who posted the DWG file. I simply modeled the mounting holes for the projector that were missing and created the STL so that it could be 3D printed. Avoid using PLA material for this bracket, as the inside of the headlight housing can get fairly hot and any warping of the part will cause issues with beam alignment. I decided to use a Carbon Fiber Nylon material for good stiffness and dimensional stability as well as heat resistance. Although other materials may perform okay, YMMV.
