Chevrolet Bolt / Opel Ampera (2017) False cargo floor bracket - image

Files (2)

False_floor_bracket_left_V442021.STL

STL

238.9 KB

False_floor_bracket_right_V442021.STL

STL

238.9 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

2 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 40%	100% solid	Recommendation
False_floor_bracket_left_V442021.STL	Choose left variant	238.9 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 40% infill. Pick the matching side before printing.
False_floor_bracket_right_V442021.STL	Choose right variant	238.9 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 40% infill. Pick the matching side before printing.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Interior

Chevrolet Bolt / Opel Ampera (2017) False cargo floor bracket

0 downloads45 views0 quality score

Print this part

Check the available model and saved setup details before opening your slicer.

Files

2 hosted model files

STL

Material

PETG or ASA

Print time

Slice to calculate

Filament

Slice to calculate

Supports

supports unlikely

Infill

10 percent infill

Difficulty

Not rated — inspect geometry

Vehicle heat

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Confirm orientation, supports, print time, filament use, and printer compatibility. Test-fit before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

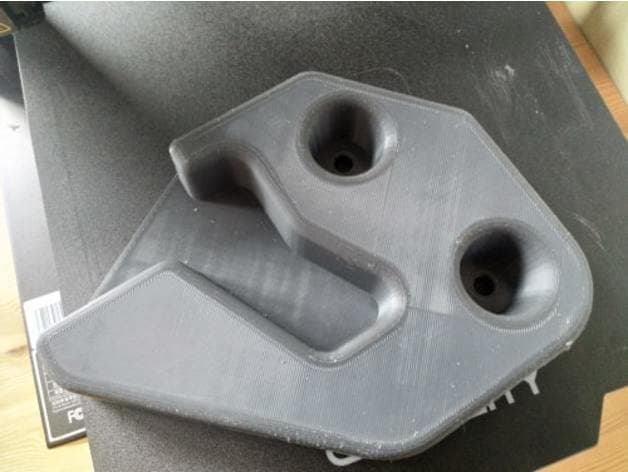

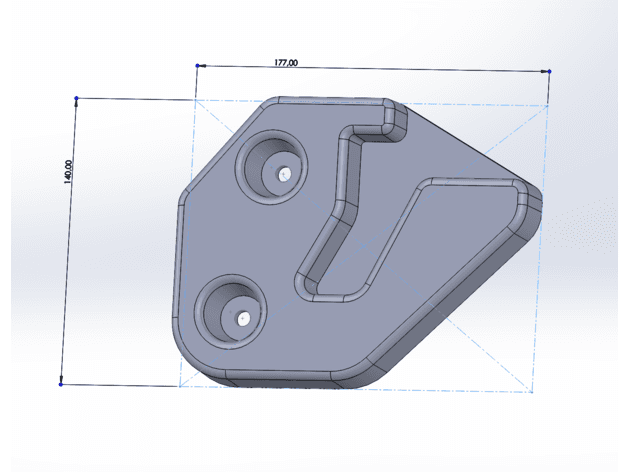

As user tyeo098 rightfully pointed out, the OEM version of the False Floor Bracket (as well as the 3D model that floats around the internet) was designed for injection molding: Hollow with some ribs and a brim like edge around it. Printing this using FDM 3D printers would require a lot of (wasted) support material and also take about 14 hours of printing. This design of the false cargo floor bracket takes the original OEM design and modifies it to be well suited for FDM printing. A slight draft angle of 2 degrees was kept, in addition to some added reinforcements at the front opening. With 10 percent infill it will be plenty strong and printing takes about 8 hours. No supports needed!
