Center Console

Chevy Impala Arm Rest Hinge Plate

0 downloads86 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA

Saved part guidance

Strength start

20-30% infill for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

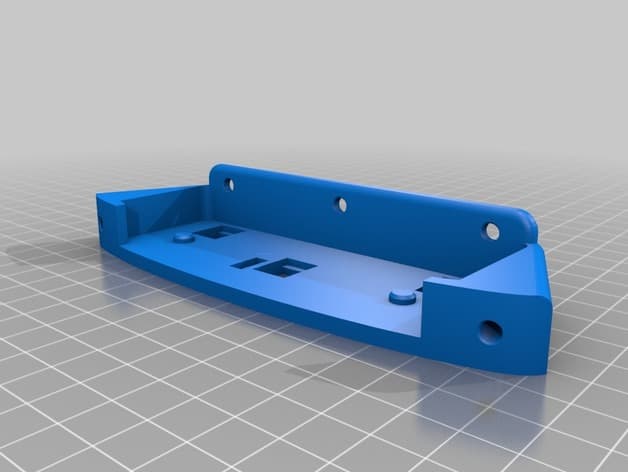

I designed this to replace the plate in the arm rest of my 2000 Chevy Impala used to connect the hinge of the arm rest to the base of the center console. The original plate is designed ridiculously thin for the application and eventually the arm rest hinge tore out. This plate snaps in over top of the remnants of the old plate. Designed with threaded M5 bolt holes just in case I needed them but It was such a tight fit that no additional screws were needed to keep it in place. It's designed to re-use the screw retains from the original plate, just pop them out of it and into this. Do not print in PLA. I printed with Hatchbox PETG and it's survived a summer in the car in Phoenix Arizona (so external temps at or near 120 F) so that should cover most earth temps in the higher end. I've added a DXF of the base plate I extruded from if someone cares to do their own or make one for the case where the old plate is completely removed.
