Chevy Volt (2nd Gen) Console RAM Mount Bracket

0 downloads74 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ABS

Saved part guidance

Strength start

Higher infill percentage for added reinforcement

Saved part guidance

Orientation / supports

supports likely

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

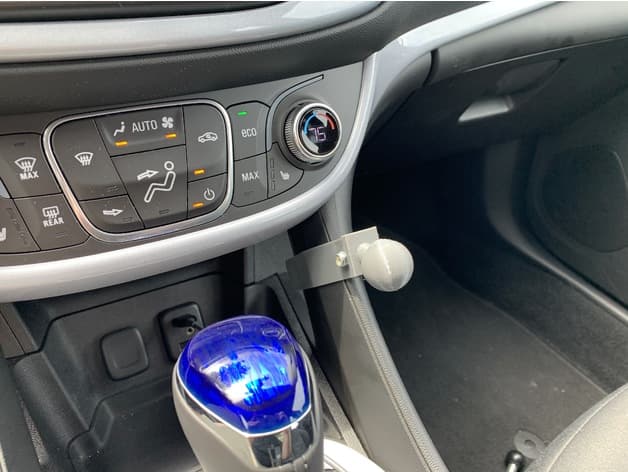

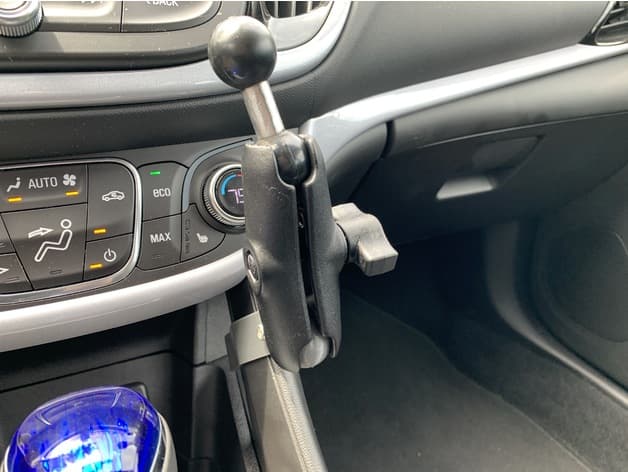

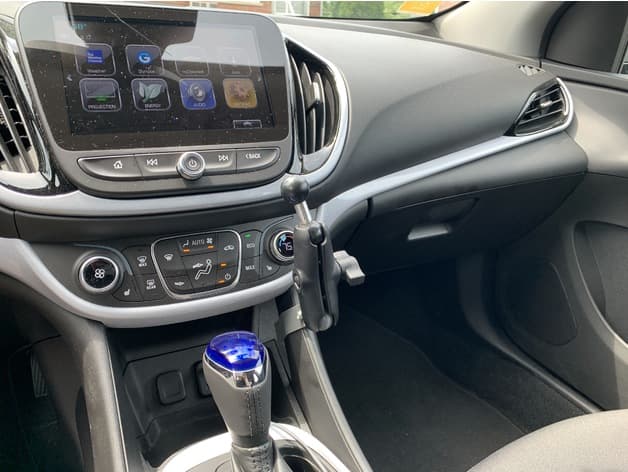

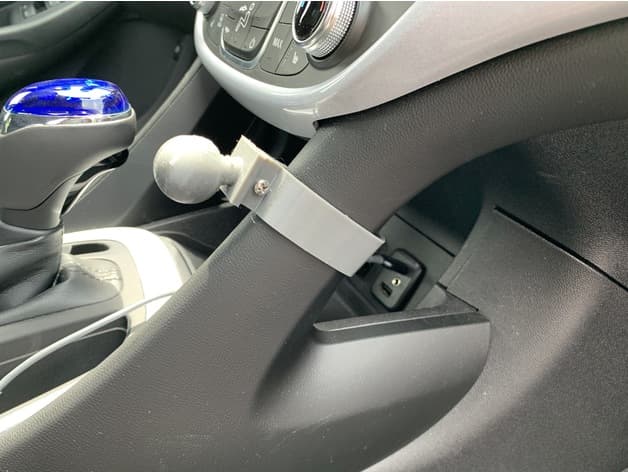

This is a center console 1" ball RAM style mount designed to fit in a 2nd. Gen Chevy Volt. I didn't like any of the commercially available mounting options out there and found this to fit my needs. I don't have any 3D modeling experience, In fact, this STL file is a combination of two separate STL files that I hacked together with PrusaSlicer. I welcome and encourage any improvements to this design. Please visit the original authors for their source files: -Volt center console bracket: https://www.thingiverse.com/thing:2804875 (CC BY 4.0) -1" ball RAM style mount borrowed from: https://www.thingiverse.com/thing:3196395 (BSD License) IMPORTANT: You need a screw & nut to firmly clamp the front of the bracket to the center console. There are cut-outs for a M3x12 screw & M3 hex nut, but really any screw and nut you had that would fit through the hole would work fine. Printing Recommendations: -I'd recommend printing in ABS or PET due to the potentially high-temperature requirements during the summer in your vehicle. -Consider a higher infill % in order to reinforce the ball and attachment point, especially if you plan on adding a significant amount of weight or other stress to the ball. Succesful printing with PETG, printed with a brim, and supports touching the build plate. (Supports are definitely needed under the ball).
