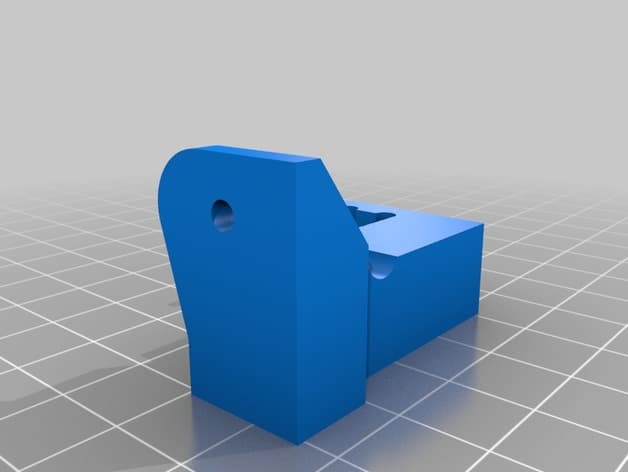

Common Rail TDI VW bracket to eliminate P2015 Trouble Code: Intake Manifold Runner Position Sensor

0 downloads44 views0 quality score

Print this part

Check the available model and saved setup details before opening your slicer.

Files

2 hosted model files

STL

Material

PETG or ASA for durability in high engine bay temperatures

Print time

Slice to calculate

Filament

Slice to calculate

Supports

verify in slicer

Infill

20-30% infill for strength and minimal weight

Difficulty

Not rated — inspect geometry

Vehicle heat

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Confirm orientation, supports, print time, filament use, and printer compatibility. Test-fit before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

This is to limit the intake sensor on my 2012 VW Jetta TDI to get rid of the p2015 check engine light. I measured and modeled this from a part I saw on my friends VW. He had bought this part off amazon. I changed a few things to make it easier and stronger to 3d print. This is for a car with the aluminum intake. This works for a lot of cars that have the p2015 code. Don't spend $990 from the dealer to fix this!!!! Print from PLA and anneal it, or print from PC to withstand the high engine bay temps. You will need to drill out the hole once it's done printing/annealing to fit the long bolt. I added another file with the hole the correct size if you don't want to drill it out.
