Fiat Punto 2013 TomTom/Phone Holder - image

Files (8)

Back_Plate_V2.stl

STL

661.4 KB

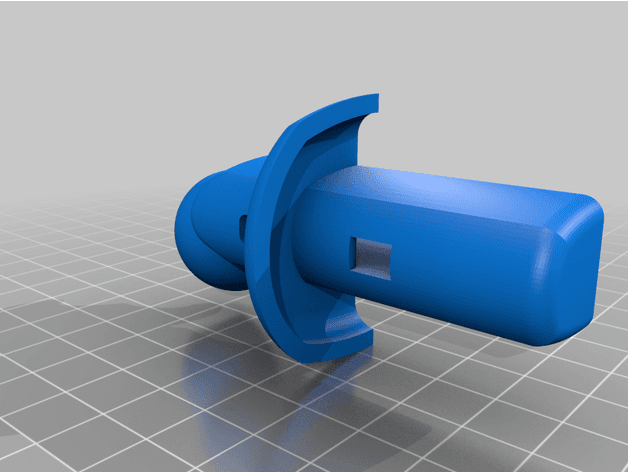

Dash_Plug_Left.stl

STL

1.3 MB

Dash_Plug_Right.stl

STL

1.3 MB

inner_ball.stl

STL

370.4 KB

Lock_Clip.stl

STL

92.8 KB

Side_Clamp_V2.stl

STL

504.2 KB

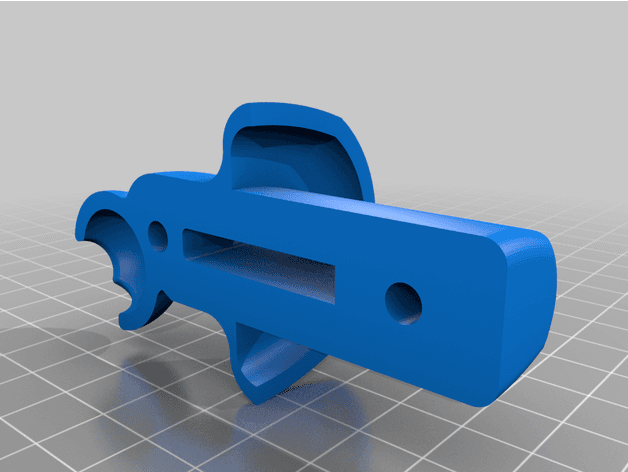

Swing_Arm_Short.stl

STL

1.2 MB

USB_V2.stl

STL

239.9 KB

Print guidance estimate

Estimated from part metadata

Print cost & setup estimate

Planning numbers for filament, cost, time, and setup. Treat them as estimates until you confirm the file in your slicer.

8 model files

Typical selected file

34g

Based on 25% main infill for the largest likely-needed model file

Material cost

$0.83

Filament only at roughly $24/kg PETG / ABS

Print time

59m–1.6h

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ABS 20%	PETG / ABS 25%	100% solid	Recommendation
Back_Plate_V2.stl	Printable file	661.4 KB STL	24g $0.57	26g $0.62	56g $1.35	Ensure dimensional calibration is accurate due to small tolerances
Dash_Plug_Left.stl	Choose left variant	1.3 MB STL	32g $0.76	34g $0.83	76g $1.81	Use PETG / ABS, 4 walls, 25% infill. Pick the matching side before printing.
Dash_Plug_Right.stl	Choose right variant	1.3 MB STL	31g $0.75	34g $0.82	75g $1.79	Use PETG / ABS, 4 walls, 25% infill. Pick the matching side before printing.
inner_ball.stl	Printable file	370.4 KB STL	19g $0.45	21g $0.49	45g $1.08	Ensure dimensional calibration is accurate due to small tolerances
Lock_Clip.stl	Clip	92.8 KB STL	12g $0.29	13g $0.31	29g $0.69	Ensure dimensional calibration is accurate due to small tolerances
Side_Clamp_V2.stl	Printable file	504.2 KB STL	21g $0.51	23g $0.55	51g $1.21	Ensure dimensional calibration is accurate due to small tolerances
Swing_Arm_Short.stl	Printable file	1.2 MB STL	31g $0.73	33g $0.80	73g $1.74	Ensure dimensional calibration is accurate due to small tolerances
USB_V2.stl	Printable file	239.9 KB STL	16g $0.39	18g $0.42	39g $0.93	Ensure dimensional calibration is accurate due to small tolerances

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Phone Mounts

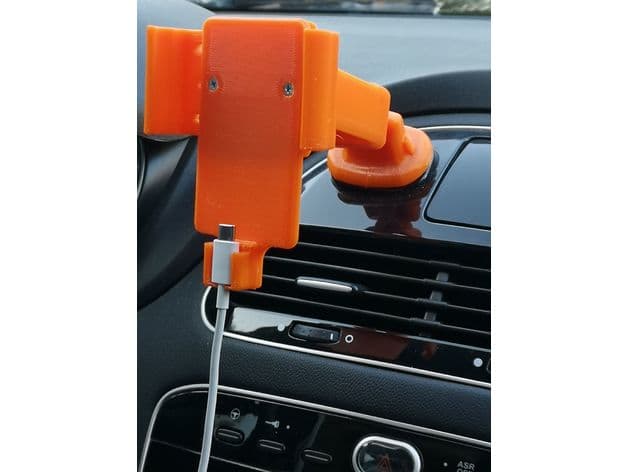

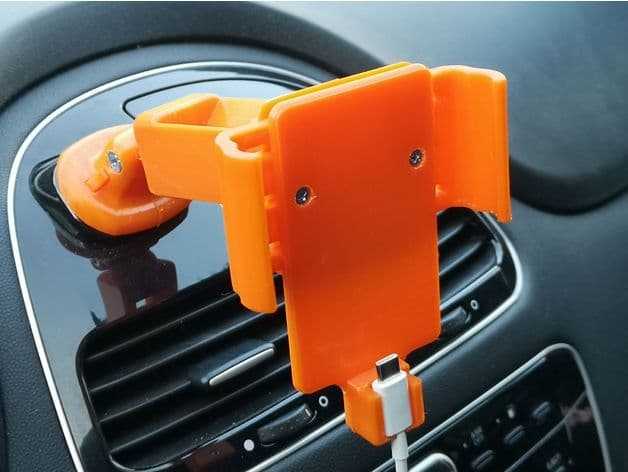

Fiat Punto 2013 TomTom/Phone Holder

0 downloads49 views0 likes

Shared by

Alfred

Verified

Description

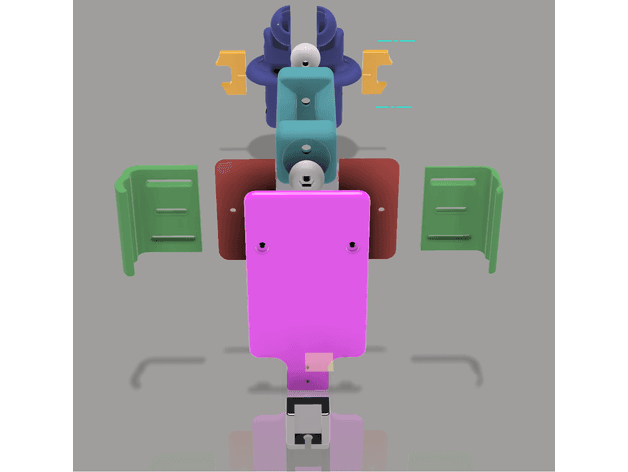

This is a REMIX of another creator and model, for a different version of FIAT/ALFA: the inclination of the dashboard is different, as the distance from the driver. Thanks to him I've edited the original F360 file and did several fixes and improvements: - head ball rotated of 30° upward - swing arm made shorter - different USB C cable holder. - bigger backplate for 5" phone and bigger. - dash plug a little bigger - fixed all the holes for a perfect fillet. PRINT IT IN ABS OR PETG, DON'T USE PLA. TEST YOUR DIMENSIONAL CALIBRATION BEFORE PRINT...tolerance here are very small. Original Assembly instructions: https://imgur.com/a/MSMyT Things you'll need: Required hardware: 4 x M5 20mm hex bolts 2 x M5 nuts 2 x M3 15mm screws 2 x M3 nuts 2 x R1.5mm 6mm self-tapping plastic screws (for the lightning clip) 1 x Spring from a ball point pen.
