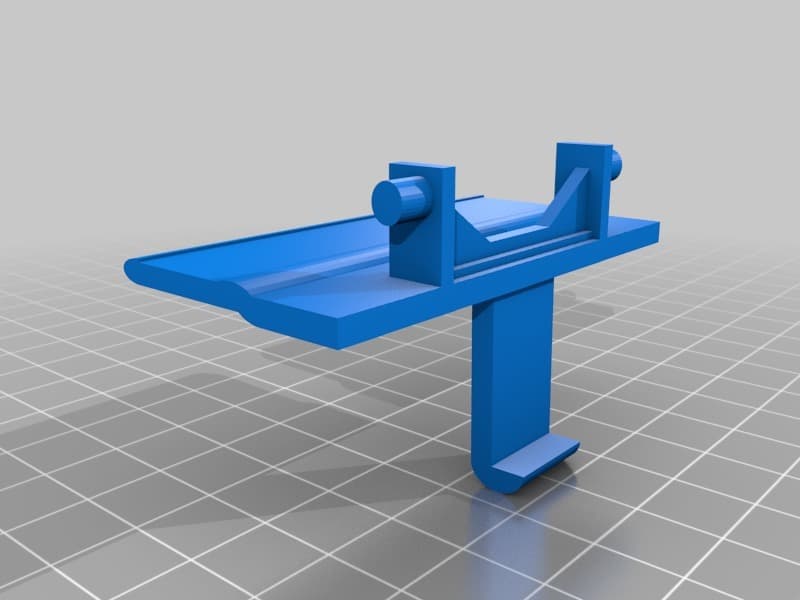

Ford F-150 Lid Latch for center console armrest 2010-2015

0 downloads3 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for durability in a car environment

Saved part guidance

Strength start

75% infill for strength, with 2-3 walls for stability

Saved part guidance

Orientation / supports

supports likely, verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

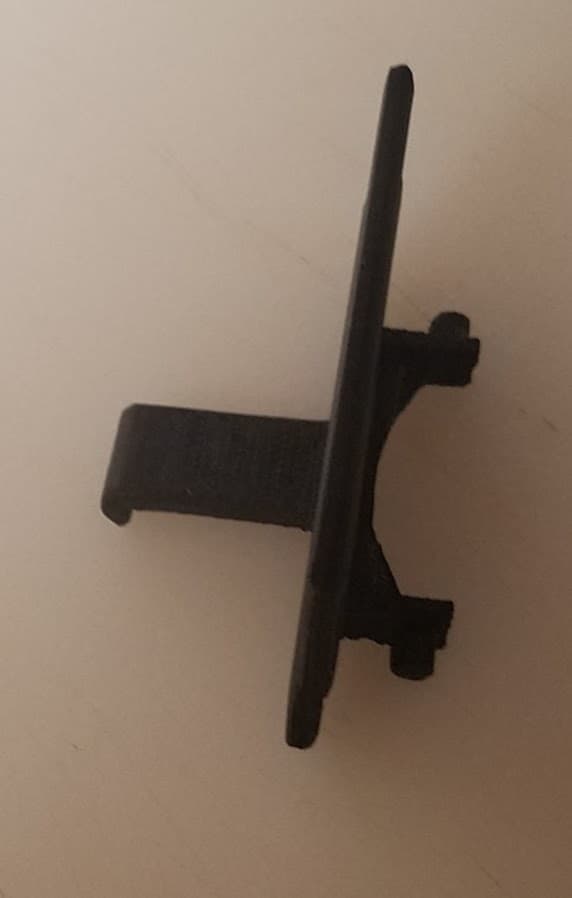

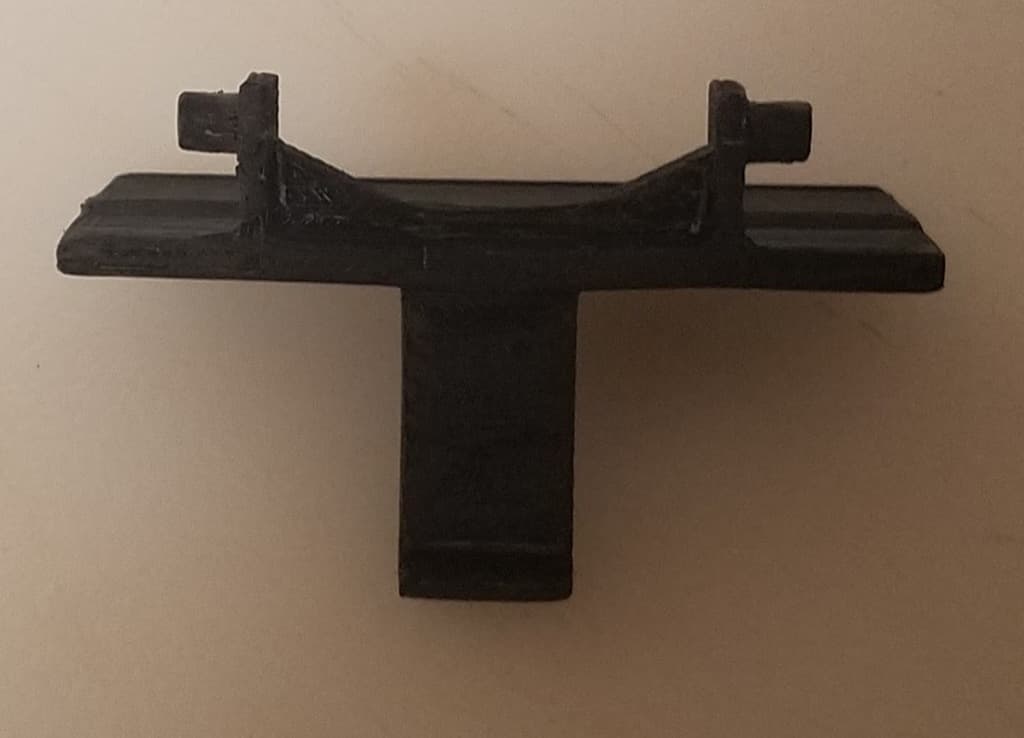

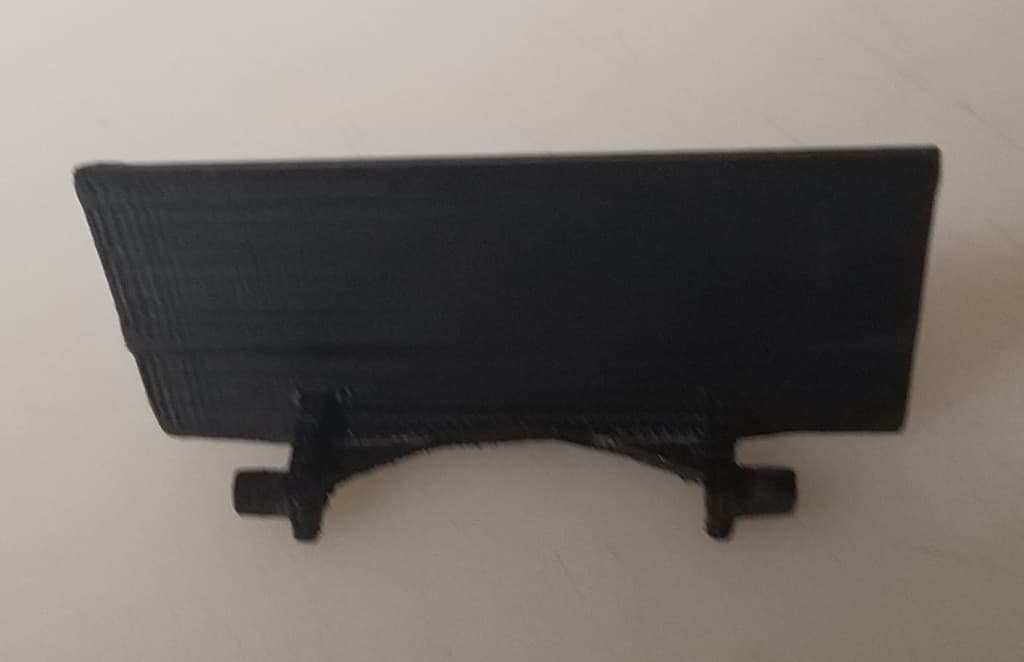

I broke my original latch on my 2012 F-150. I remixed this and made the pins braces a little narrower to make it easier to put in i also removed the 3d printed spring part and reinforced the pins instead this was still a very tight fit you might need to still sand the pins down shorter. might modify more if it breaks in future. A paper clip spring will work but If you have original spring, use that instead. attached is a youtube of how to install the latch i do not own this video. Print Settings Printer: Turnigy Fabrikator Rafts: Yes Supports: Yes Resolution:.2m Infill: 75% Notes: slice the print so the pins and latch are flat on the glass with supports touching build plate Post-Printing ============= print laying flat like this and make sure you have supports touching build plate lot of overhang in the latch part Category: Automotive.
