Garmin Car GPS Vent mount for Honda Jazz/Fit 2014 model

0 downloads95 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

4 hosted model files

STL

Material start

ASA or ABS for better heat resistance

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Windshield/dash heat — validate after a parked-car soak

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

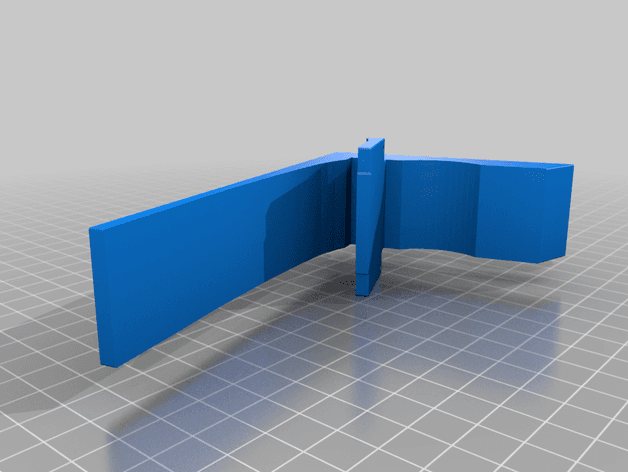

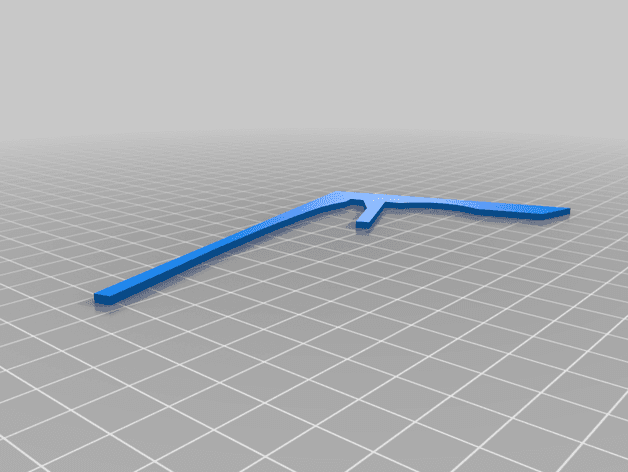

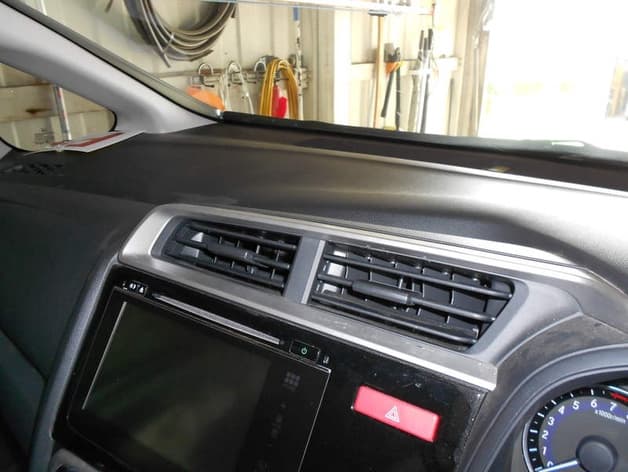

Description
