GMC Sierra / Chevy 1500 center console base mounting plate

0 downloads38 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for durability in vehicle conditions

Saved part guidance

Strength start

20-30% infill for strength and moderate weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

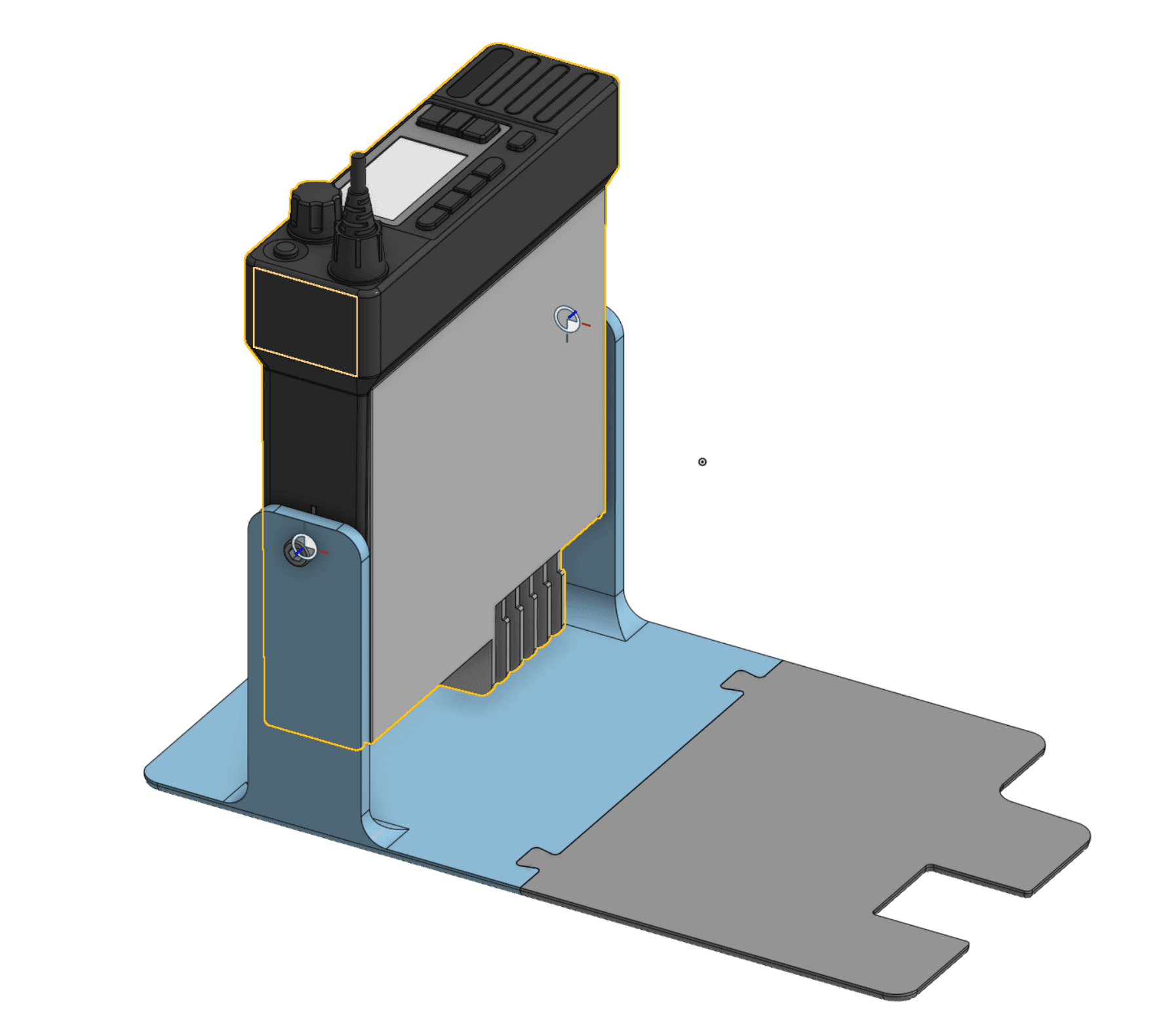

GMC Sierra / Chevy 1500 center console base mounting plate. Works for model year 2025 GMC 1500 AT4 and similar models. I have created several sets of files: 1_passenger_split_radio and 1_passenger_split_radio. Used to mount a Motorola XPR 5500e radio with a cutout for RF + power. 2_single. the base plate as one large file. 3_ passenger_split and 3_driver_split. Which is the base plate split in two for easier printing. The base plate with the XPR 5500 holder works well with https://www.amazon.com/dp/B0CSFNG896?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1. With a reciprocating saw you can cut out a slot in the passenger cubby without cutting into the ribs.
