Headlamp adjusters for BMW E39 vehicles

0 downloads270 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

2 hosted model files

STL

Material start

PETG or ASA for durability in outdoor conditions

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

UV/weather exposure — ASA is the starting point

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Michael Chen

Verified

Description

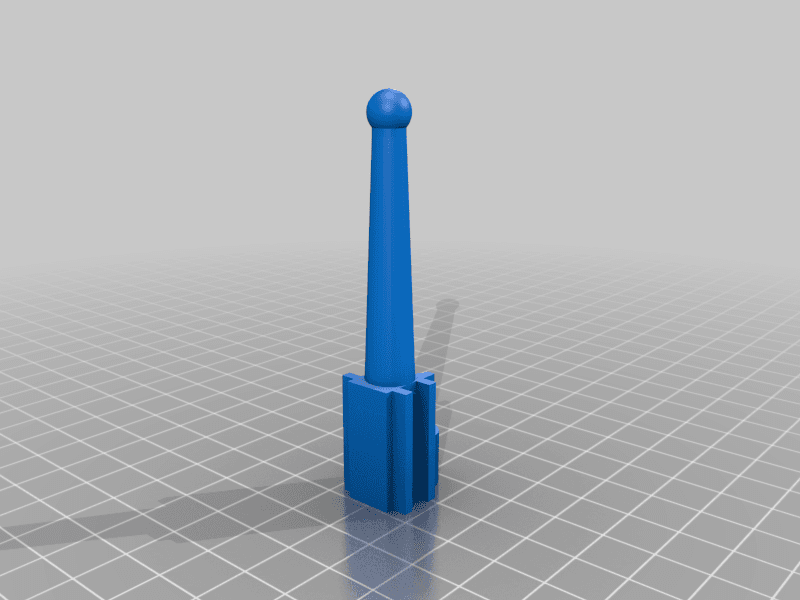

These headlamp adjusters are for the BMW pre-facelift E39 series (5-series from 1996 onwards). The originals are made of some material that gets super brittle with age, and pretty much self destruct. Thus making the headlamps aim far too low, and wobble when driving over the slightest dump. BMWs own solution is to supply new lamps as complete units, price probably approaching $1000. To fix, you need to take the headlamp units apart, which is actually quite easy. There are various instructions on the net, The two manual adjusters simply fully unscrew to release. The third adjuster, connected to a motor, is released by turning the exposed 5mm plastic nut 90 degrees (not all variants have this feature). One word of warning: Do not touch the reflectors, they are very easily destroyed by attempts of cleaning. You need one of each of these per side. They will work for the early halogen units, but may need modification for "angel eyes", and I have no idea about Xenon. Note also that the shape is different from the originals. I believe these may be slightly better - the originals were limited by what you could do with casting. For best strength you should ideally print them laying down, but then some support is needed.
