Jeep XJ + Other makes replacement blend door main gear

0 downloads282 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for heat resistance

Saved part guidance

Strength start

high infill (90-100%) for strength and durability

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

UV/weather exposure — ASA is the starting point

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Michael Chen

Verified

Description

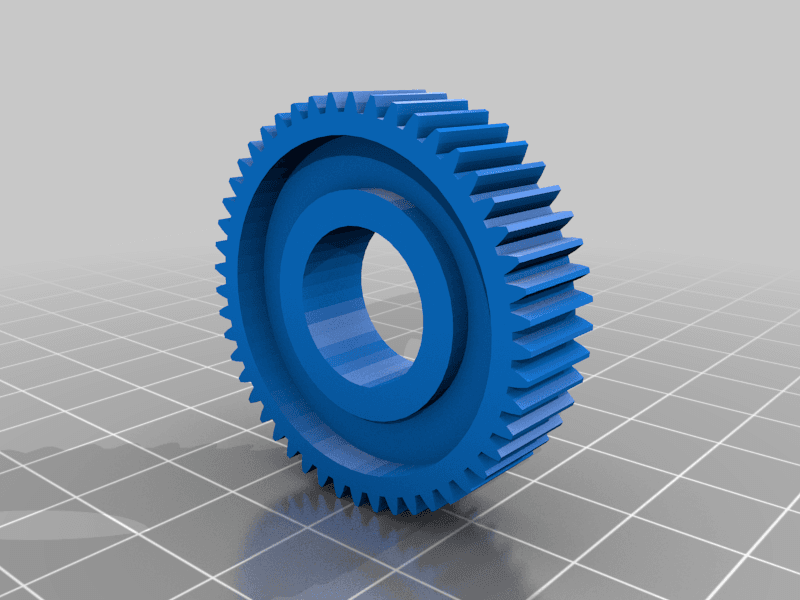

This is a replacement main gear for the HVAC blend door actuator that tends to crack and break with age. From what I could find, this gear should also work for the following units as well in addition to some Mercedes-Benz models. List Below. if you are unsure, disassemble your unit and compare with attached photo and gear. It may work for your use case as well. When servicing take care to note the orientation of the metal shaft in addition to the blue gear to make sure alignment does not get lost. Install with flat side of gear facing up. Be sure to lubricate with a plastic safe lubricant and reassemble! Print with the flat side to the bed of the printer with maximum infill. Choose suitable filament that can withstand torque and high heat for reliable operation. CADILLAC ESCALADE 1999-2000.
