MAC boost control solenoid bracket - MX5 Miata - image

Files (1)

MAC_boost_control_solenoid_bracket__016.stl

STL

501.4 KB

Print plan

Exact totals not supplied

Print setup plan

Useful setup guidance without pretending STL byte size can predict filament, cost, or print time.

1 model file

Material plan

ASA / a similar high-heat tolerant material

Published material guidance; still check heat, UV, load, and printer compatibility.

Starting setup

40% infill

A planning starting point only; wall count, orientation, and geometry often matter more than infill.

Final totals

Confirm in slicer

Slice the selected model with your final material, orientation, walls, and supports.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Mechanical/Functional

MAC boost control solenoid bracket - MX5 Miata

0 downloads55 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

ASA or a similar high-heat tolerant material

Saved part guidance

Strength start

medium to high infill for durability

Saved part guidance

Orientation / supports

supports unlikely, verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

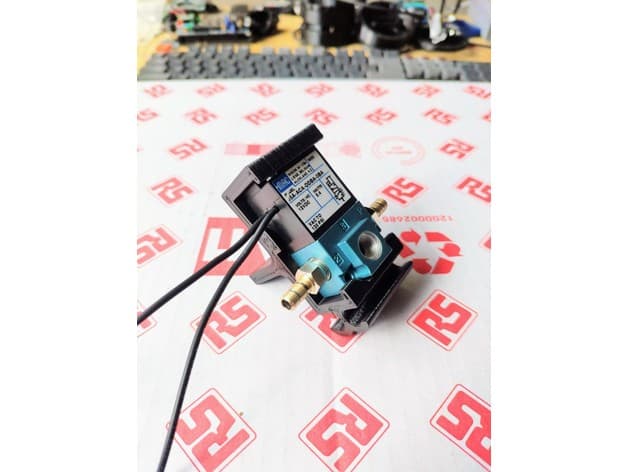

3D printable bracket for a MAC boost control solenoid. It holds the solenoid VERY tightly, you'll need some strong fingers to get it in/out. Must be printed in a high heat tolerant filament, at least ASA (as pictured). It was designed to mount to one of the m6 fuse/relay box studs on a NB MX5 Miata (RHD), but might fit in other cars, feel free to modify the bracket for other mounting points. Just make sure it can withstand the heat in that area of the engine bay. Has integrated clips at the bottom to hold 7mm & 8mm OD vacuum hose, to help prevent kinking on one side. No supports necessary, if you orient it flat side down (left side).
