Megasquirt DIYPNP Alternator board mounting brackets

0 downloads52 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for durability and heat resistance

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

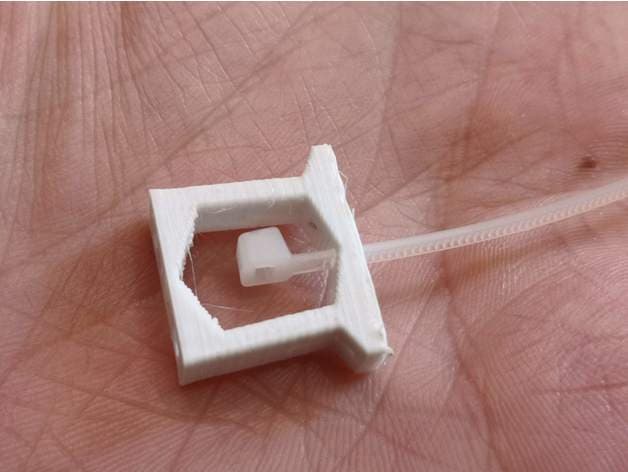

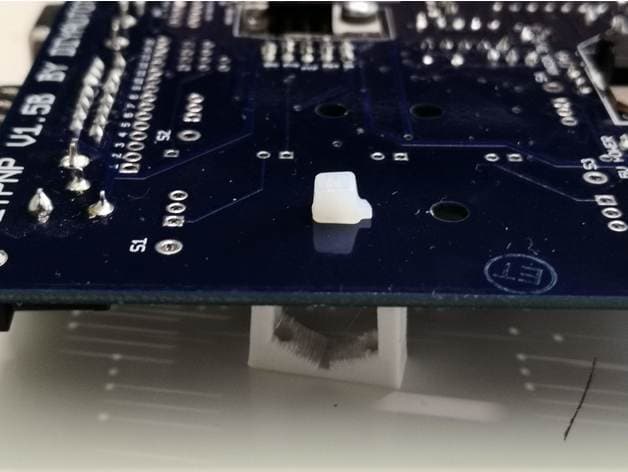

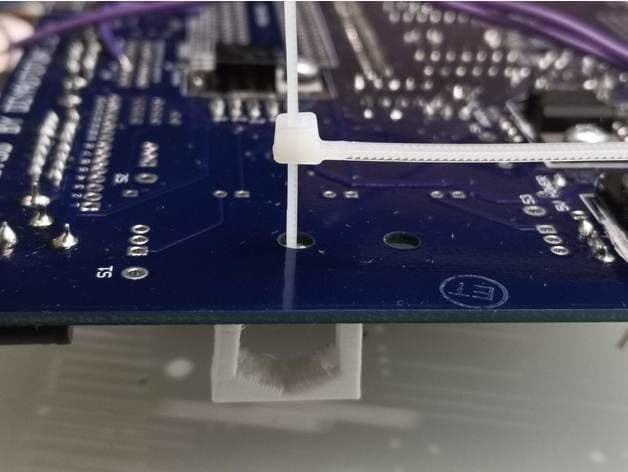

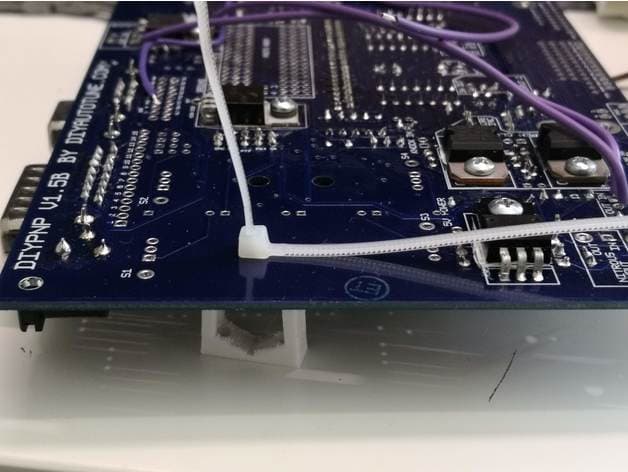

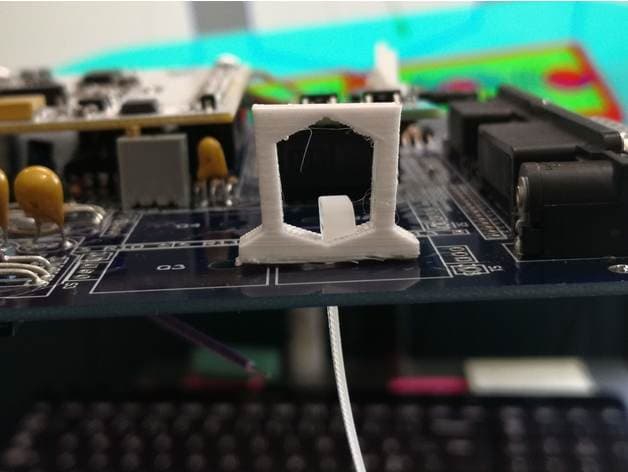

This is a bracket to hold the Alternator Control board down, firmly to the Megasquirt DIYPNP. May also work on other megasquirts. Instructions for the board says to use hot glue, but I find that a bit on the skecthy side. Why do you need the Alternator Control board? The miata NB (MX-5 NB) have the alternator control imbedded in the orgininal ECU. When you swap ECU with the Megasquirt, the car will not charge anymore. This board is bought on Ebay, and has the name: "99-05 Miata Alternator Control V3.3 by Westerfield MX5" Mounting of the brackets is done with a Zip-tie to the first bracket, trough an exisiting hole on the main board. To mount the other bracket, use two bits of stripped wire and solder the wire to the proto-area on the main board. Mounting of the alternator board to the brackets is done with M3 bolts. Length of the bolts can be between 4 and 9mm If you printed this, come say hi in the comments:D.
