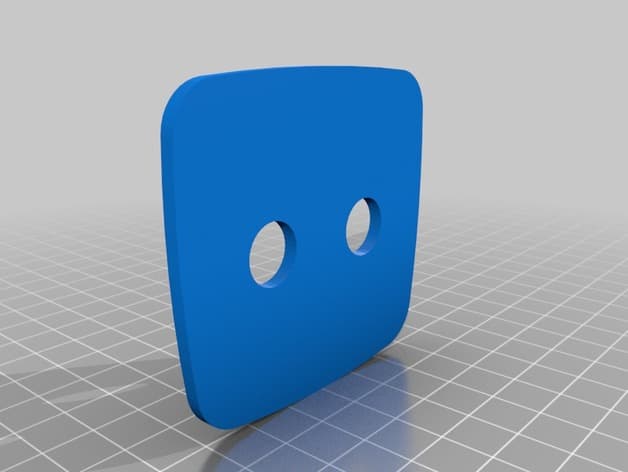

MX-5 NB Window Switch-cover

0 downloads53 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA

Saved part guidance

Strength start

20-30% infill for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC-SA

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

I used to own a MX-5 NB. Beautiful little cars, but they have a couple of downsides. One of those downsides is that the windows-switches tend to fail. Internally something just wears out. You end up with a window that's rolled down, but won't come up anymore. On the internet I found this mod where you can use simple 2-pole switches. With a little re-wiring these were perfectly usable as a replacement. I was left without a proper cover. So for that I designed this 'Thing'. I always liked the original idea by revlimiter, but my design worked more that adequate. I chose to forego on the mounting bolts and use a small drop of superglue instead. Never came off but was easily removable when it was called for. More tweaking info: http://revlimiter.net/mods/nb_window_install.php and http://mazdaroadster.net/showthread.php?1719-DIY-Power-Window-Switch-Info Switch-type I used: http://www.ebay.com/itm/Heavy-Duty-20A-125V-DPDT-2-Pole-Double-Throw-6-Terminal-On-Off-On-Toggle-Switch-/121427723277
