MX5 NC Soft top rear catch handle
Print this part
Use the part context as a starting point, then confirm geometry-dependent values in your slicer.
Files
Source link only
No hosted model files
Material start
PETG or ABS
Saved part guidance
Strength start
20-30% infill for durability, with 2-3 walls for strength
Saved part guidance
Orientation / supports
verify in slicer
Exact totals
Slice for grams + time
Model geometry and final settings determine both
Vehicle exposure
Cabin/interior use; avoid high-heat zones
Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.
License & use
Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
3DPrintedCarPartDescription

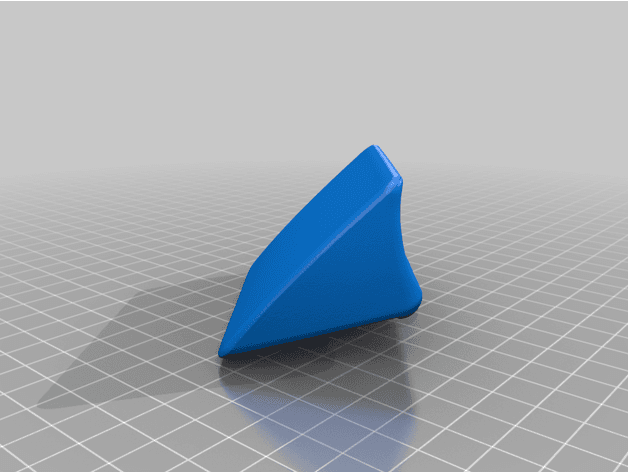

This is the rear catch handle, sitting between the seats; used to release the soft top to close it. As this rear catch release is difficult to find and given the fact Mazda do not sell it, i scanned mine using a CT-SCAN to share the model. Pay attention that this is a raw scan of an used part. Therefore the dents and defects of my used part are reproduced. I'll update as soon as i have some time to tweak the model. I recommend to print using ABS or PETG.
Compatible Cars
Originally published on thingiverse.com by Christophe Gilson (MXTale) · License: CC BY-NC
Share whether this print actually fits a real car. Installed photos and material notes make the catalog more trustworthy.
