Mechanical/Functional

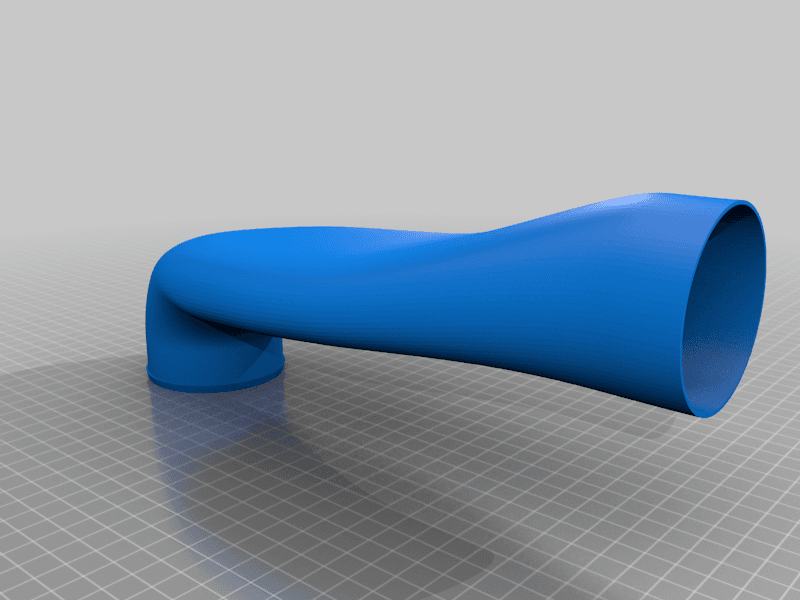

NA Mazda Miata Intake

0 downloads236 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for heat resistance

Saved part guidance

Strength start

thin walls, 1.2mm or as needed for structural integrity

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Michael Chen

Verified

Description

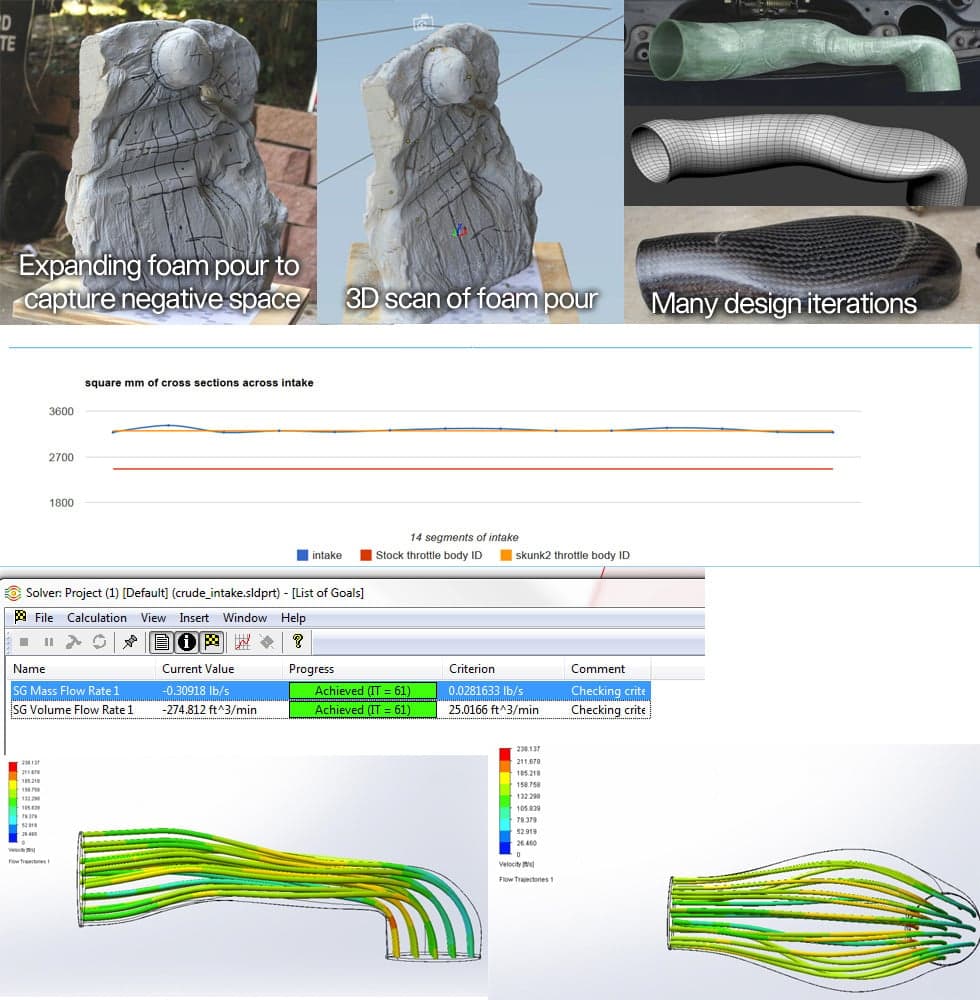

This is the updated design from my older cold air intake published elsewhere. Significantly better flow, CFD says it will outflow a typical 90 degree elbow. Included are two files, one with a shell thickness of 1.2mm and another with just a skin that can be shelled to whatever wall thickness is needed. For clearance, do not expand the skin more than .5mm. This design was intended for a thin wall thickness. Engine bay heat soak can causes the part to see very high temps. Enough that PLA is a non starter, and ABS is marginal. My plan was to print these with a 1.2mm nozzle in straight polycarbonate (not one of the more easily printed PC blends)- For printing I was planning to hack together a gcode file from two sperate slice results, with the elbow side at the bottom transitioning into a vase mode print after the bend. To set this part up you will need: Assuming a MAP based aftermarket ECU you will need:.
