Nissan Door Trim Clips

0 downloads104 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA

Saved part guidance

Strength start

20-30% infill for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

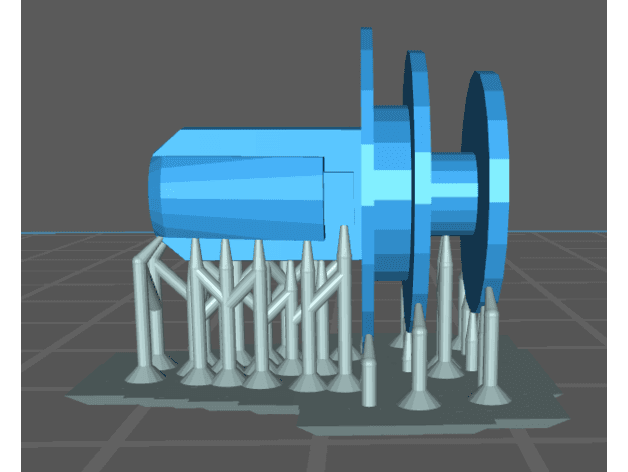

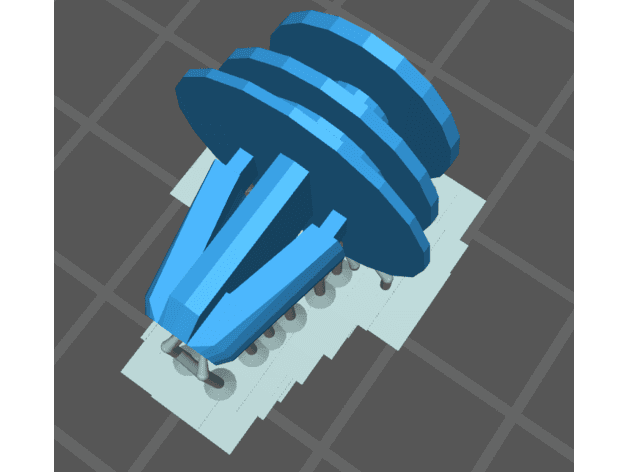

Replacement inner door trim clips for a Nissan NV3500 (and probably other Nissan models). I made two variations, one with thicker clips, and one with thinner clips. I printed mine with the thicker clips, but realized they were a bit too difficult to push in (had to punch the door panel to get them to seat), and possibly broke some in the process. As a result, I slimmed the clips' diameter down by ~1mm to make them easier to insert. You may want to try out both before settling on which variation works better on your vehicle. I printed mine on an Elegoo Saturn resin printer, oriented 90° sideways so that the supports contact the edge of each disk and clip and the disks print upright (see attached image). For FDM printers, you may need to use tree supports, OR try laying the models on their side, drop the Z through the build plate, and print with the internal posts laying on the bed, cutting off ~40% of the side of the clip. This object was made in Tinkercad. Edit it online https://www.tinkercad.com/things/6hu7bLofelG
