Pontiac Door Latch Connector Slide

0 downloads63 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for durability and heat resistance

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

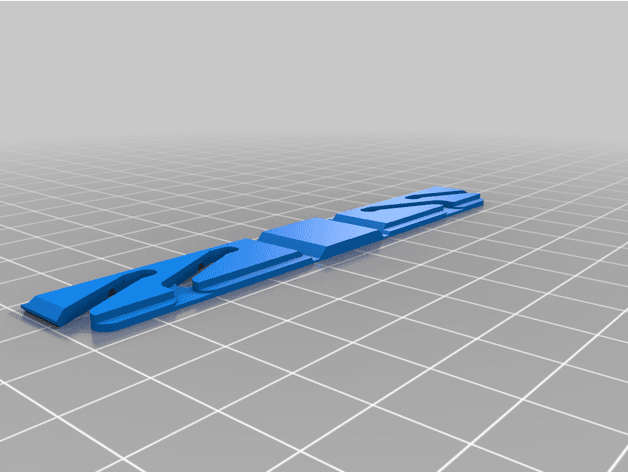

Replacement slide latch or clasp for the door latch electrical connector. Pontiac G6. Prints flat and folds into shape. I designed this as close as possible to the original, with one (other) exception - the original has a flat edge inside the slide tracks to catch a finger to help keep the slide in the locked position. It's not really necessary as there are other keepers to help with that, and it severely reduces the strength of the piece. It works fine without it, and it's much stronger. This is for a 10-pin connector, will probably fit many other slide-clasp connectors.
