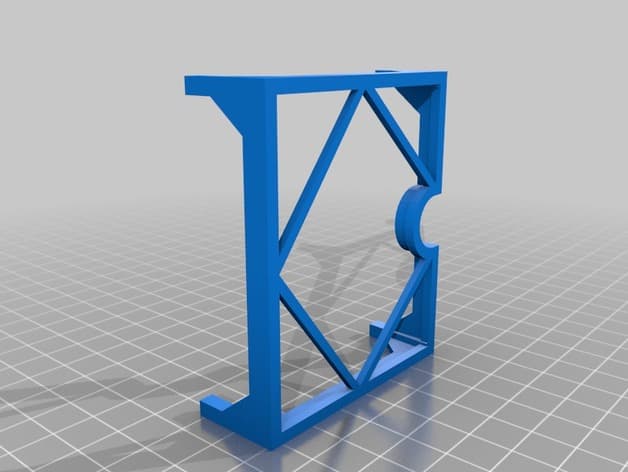

Porsche 911 LED Brake and 3rd Brake Board Frames and Clips - image

Files (4)

911_Coupe_3rd_Brake_Clip_RT_8.STL

STL

51.6 KB

911_Clip_14.STL

STL

46.5 KB

911_Periscope_Clip_6.STL

STL

87.4 KB

911_Brake_Inside_Frame_9.STL

STL

24.4 KB

Print plan

Exact totals not supplied

Print setup plan

Useful setup guidance without pretending STL byte size can predict filament, cost, or print time.

4 model files

Material plan

ABS / another high-temperature tolerant material

Published material guidance; still check heat, UV, load, and printer compatibility.

Starting setup

40% infill

A planning starting point only; wall count, orientation, and geometry often matter more than infill.

Final totals

Confirm in slicer

Choose the needed variant, then slice it for grams, cost, and print time.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
ABS filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ABS; use an enclosure and suitable ventilation, and verify temperature requirements and seller.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Light Covers

Porsche 911 LED Brake and 3rd Brake Board Frames and Clips

0 downloads212 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

4 hosted model files

STL

Material start

ABS or another high-temperature tolerant material

Saved part guidance

Strength start

medium to high infill for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

UV/weather exposure — ASA is the starting point

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

Safety/IP review

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

These clips are used to secure the Spokeworks LED boards in a Porsche 911 Rear brake and 3rd Brake Fixtures. Fits model years 1969-1989. The 3rd brake frames fit periscope/snorkel and inside window-mount fixtures. The inside window-mount frames must be a Right and Left pair. Only the Right side frame is attached. The Left side frame can be realized in the slicer program by mirroring the right side. The inside window-mount frames also must be positioned to sit flat on the platter. The bottom edge is flat but at a slight angle. These clips must be made with ABS or other material with as high or higher temperature tolerance. PLA is not a good fit for this application.
