Pre-LCI (06-08) Xenon Projector Bracket for Halogen Headlights for BMW vehicles

0 downloads66 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

High-temperature plastic such as PEEK, PEI, or a high-temp resistant filament

Saved part guidance

Strength start

High infill (80-100%) for strength and heat resistance

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

UV/weather exposure — ASA is the starting point

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

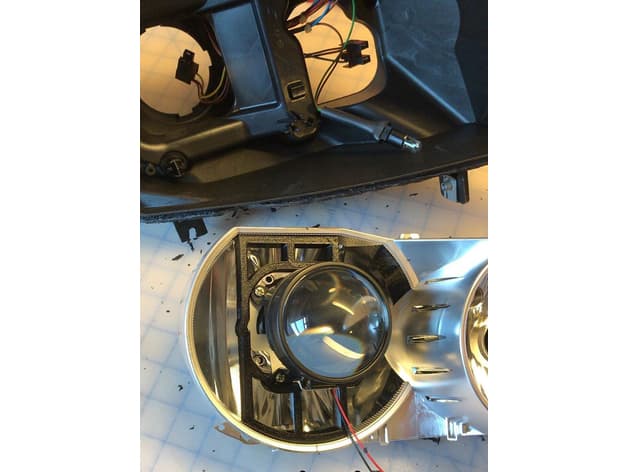

WARNING!!! I recently found out the projector gets TOO HOT for the HDPE and my bracket melted slightly, enough that it was drooping down in the headlight. I am currently machining the bracket out of aluminum, but wanted to leaves these files up in case someone could print in a high-temperatue plastic. This bracket solves the problem of mounting an H1 mini-style projector in a BMW E90/E91 pre-LCI housing, due to the low beam hole being offset to one side. It also assures that the projector is mounted in the correct vertical and rotational position for E46-R extended shrouds (https://www.theretrofitsource.com/e46-r-extended-48771.html). It is designed specifically for the ACME Super H1 bi-xenon projectors (https://www.theretrofitsource.com/bi-xenon-acme-super-h1.html), but may fit earlier versions of the Morimoto mini, and some other generic H1 projectors. Also included are mounting blocks for ACME RGB LED demon eyes that slide into the top rectangle of the bracket.
