Renault Zoe Ph2 mounting plates for Brodit mobile phone holders

0 downloads83 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG

Saved part guidance

Strength start

20-30% infill for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

High cabin heat — validate PETG or choose ASA/ABS

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC-SA

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

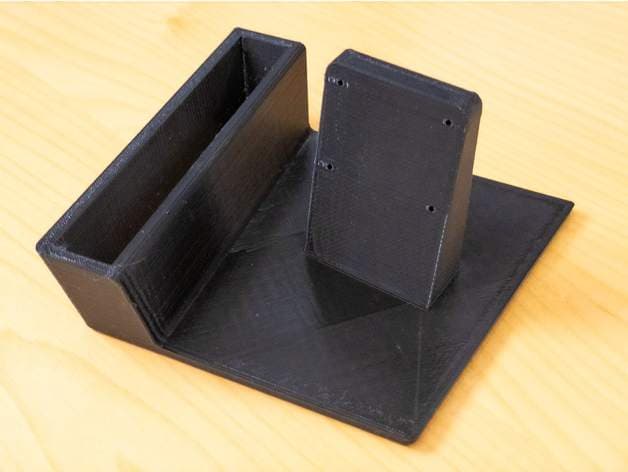

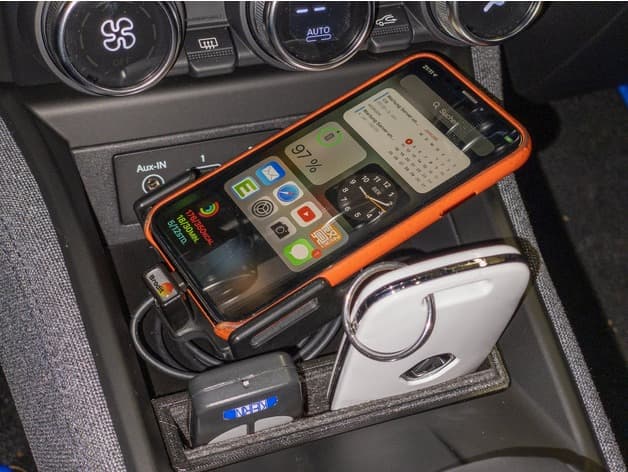

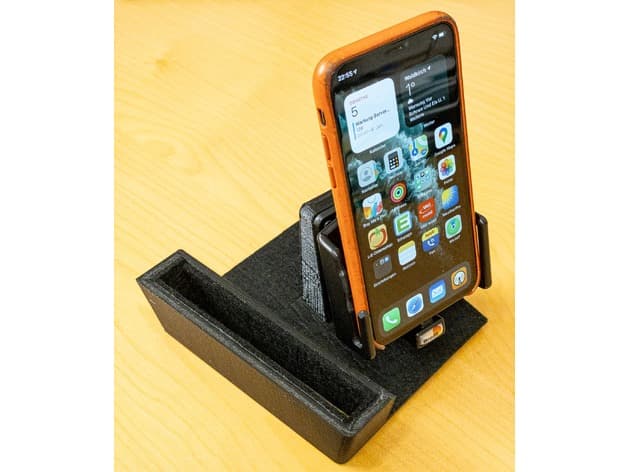

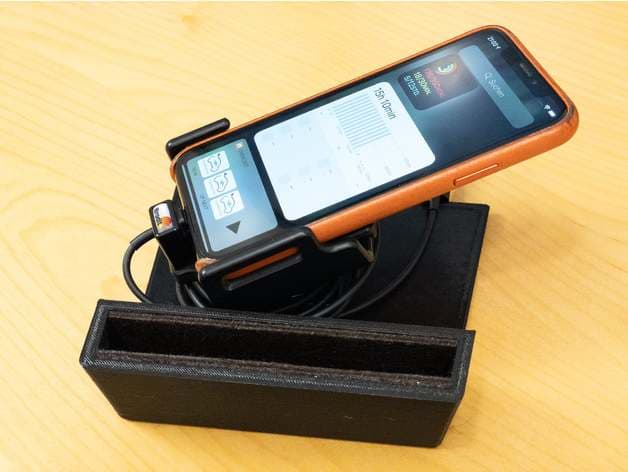

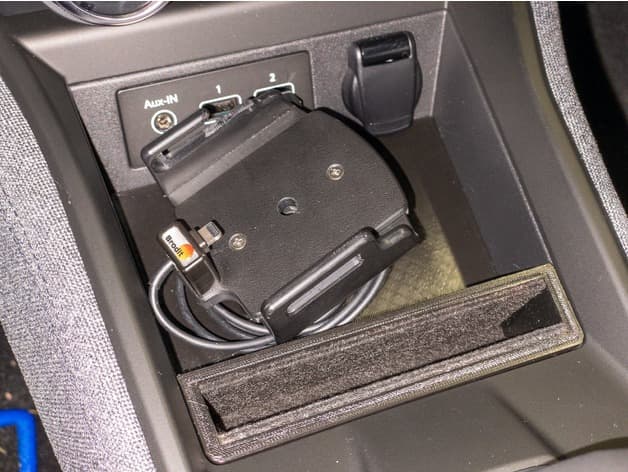

These are two mounting plates to which any Brodit brand mobile phone holder can be attached, one horizontal and one vertical. Left hand and right hand drive versions are available. Brodit mobile phone holders for all brands can be found e.g. at https://www.brodit.com/ Use two 3mm felt gliding panels as shown in the picture to create a neat car key holder (protective case). You should consider attaching the mounting plate with double sided duct tape. --- Dies sind zwei Montageplatten, auf die beliebige Brodit-Handy-Halter geschraubt werden können; eine zur horizontalen und eine zur vertikalen Aufstellung. Brodit-Handy-Halter für alle Marken gibt es z.B. auf https://www.brodit-shop.de/home.php Mit 3mm starken, zugeschnittenen Filzgleiterplatten erhält man einen geschickten Schlüsselkartenhalter (siehe Bild). Es ist sinnvoll, die Montageplatte mit doppelseitigem Klebeband zu befestigen.
