Single DIN radio slot gauge mount (2006 subaru legacy GT)

0 downloads87 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

2 hosted model files

STL

Material start

PETG or ASA for durability in a car environment

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

High cabin heat — validate PETG or choose ASA/ABS

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

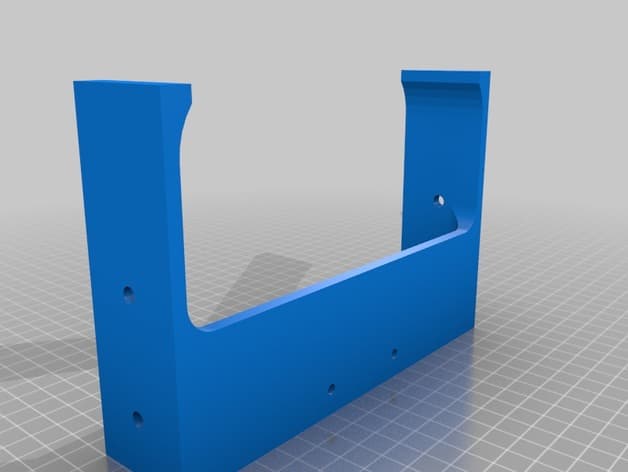

This gauge mount will only work when using a double DIN radio slot as shown in the photos. The radio trim that is shown in the pictures is the JDM HVAC panel which allows for dual climate control. The only other kit this will fit is the dual DIN with manual controls. The bracket will also fit any standard 52mm aftermarket gauge. I have also included the solidworks part files so that these designs may be modified easily. Please remember to credit me if you do use these parts and post photos!!!
