Smart 453 Magnetic Adapter for Smartphone Holder

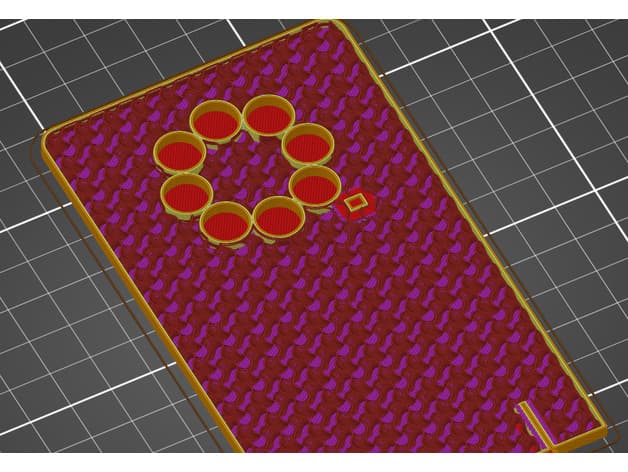

This is a mount with integrated magnets to support up to 6” smartphones. Goal was to finally have a mount that is easy to use with modern smartphones. It fits the original Smart Smartphone holder for the 453 model. Simply remove the four (Torx) bolts holding the original spider and use them to screw it to printed mount. To make this, you will need eight 10 x 3 mm magnets and be able to add a pause to your print in order to drop the magnets in. Set the pause so that the next layer printed will cover the magnet, this way you avoid collision of the nozzle with the magnets. The fit is a bit tight, be sure to drop the magnets in parallel to the print bed and push down. Important: make sure to drop in the magnet with alternating polarity to create a strong magnetic field! Screw the support to the mount using two M3x16 mm cylinder head bolts. The tab in the back is just for alignment. The support keeps the smartphone from sliding off the mount on uneven ground. Make sure to print both parts from something like ABS or PETG to keep them from warping in a hot car in summer. List of materials I used for convenience. Feel free to substitute your own: * 10 x 3 mm rare earth magnets * Metal plates for smartphone * M3x16 mm DIN 912 (ISO 4762) bolts * Original Smart Mobile Phone mount (A4538204800) to get the interface for the dashboard. Tipps: * If you use a cover for your smartphone, simply drop the metal plate between cover and phone. No need to permanently stick it to anything. This way you can reuse them indefinitely. * Try to source the bolts locally from a machine shop, should cost next to nothing then. * Buy the mobile phone mount from Smart only used, they usually go for around 30 EUR. They are insanely expensive from new.
