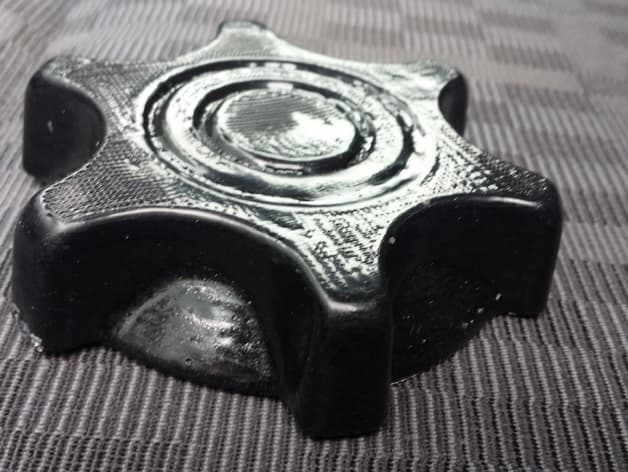

VW Sharan / Seat Alhambra Seat Back Handle

0 downloads162 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA

Saved part guidance

Strength start

20-30% infill with 1.2-1.6 mm walls

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC-ND

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

Alhambra Handle, For adjusting Seat back position on a Seat Alhambra UPDATED FILES - CORRECT THIS TIME ---------------------------------------------------------- This works on a Seat Alhambra, Ford Galaxy or VW Sharan. Tried and tested. This is a replacement for - but not a direct copy of - VW Audi part number 7MO 881 671 B. The other part number on the original part was XM21 625 28 AAW - this may be a Ford Part Number. I've included the native files, and the test print I did to make sure the spiggots all fitted nicely. I'd highly recommend printing the open ended test one first to see how it fits with your car's back. I still use the test one on the Driver's side. Print, Enjoy, Like, Collect, "I've made one" etc. @ALSO CHECK OUT MY TOYOTA PARCEL SHELF CLIPS HERE:@ http://www.thingiverse.com/thing:426125 No Rights reserved on this. Make as many as you like, sell some on at a profit. etc. p.s. if you like this car part, why not download (or just view) the other designs I've done: 20/06/2016: VW Sharan / Alhmabra Rear Adjustment Handle http://www.thingiverse.com/thing:1586975 15/01/2016: VW Sharan Trim Clip (3D Printed) http://www.thingiverse.com/thing:1274409 14/01/2016: VW Sharan Trim Clip (as Mass-produced) http://www.thingiverse.com/thing:1261167 25/10/2015: Alhambra Seat Handle http://www.thingiverse.com/thing:1092459 11/01/2015: Toyota Engine Seal Fix http://www.thingiverse.com/thing:629300 12/08/2014: Toyota Avensis Parcel Shelf Clip http://www.thingiverse.com/thing:426125 06/02/2015: Car Panel Clip (2 Versions, 4 parts!) http://www.thingiverse.com/thing:665635
