8/14.Engine Stand for the Ford FlatHead V8

0 downloads56 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA for durability in a garage environment

Saved part guidance

Strength start

20-30% infill for strength and weight balance, with 2-3 walls for stability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC

Link-only

Attribution required

Safety/IP review

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

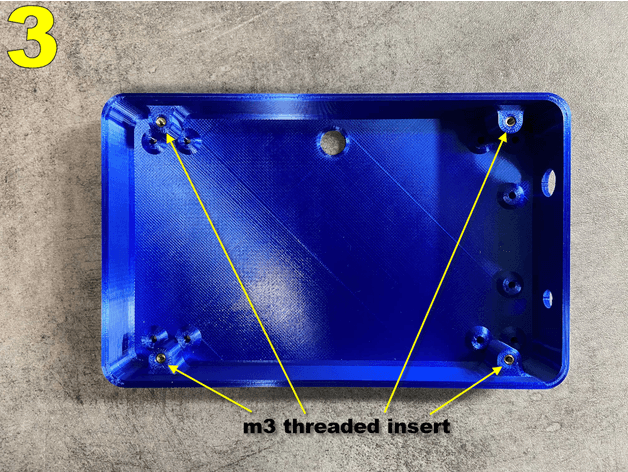

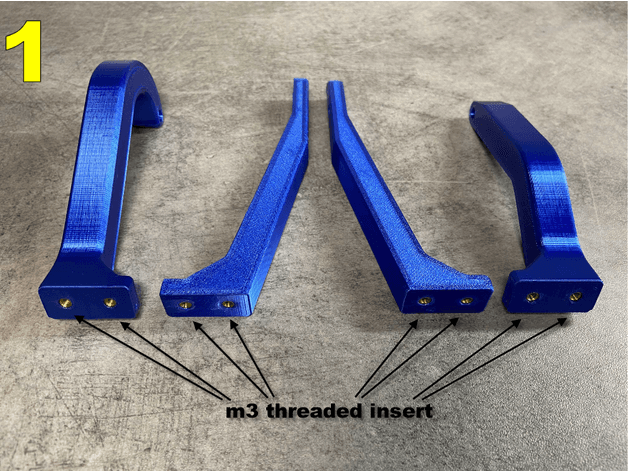

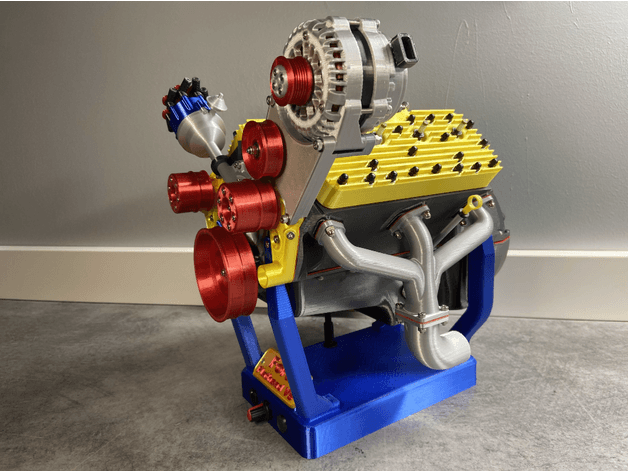

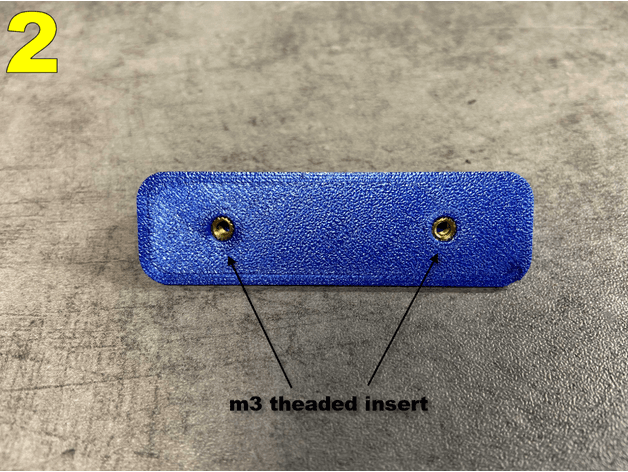

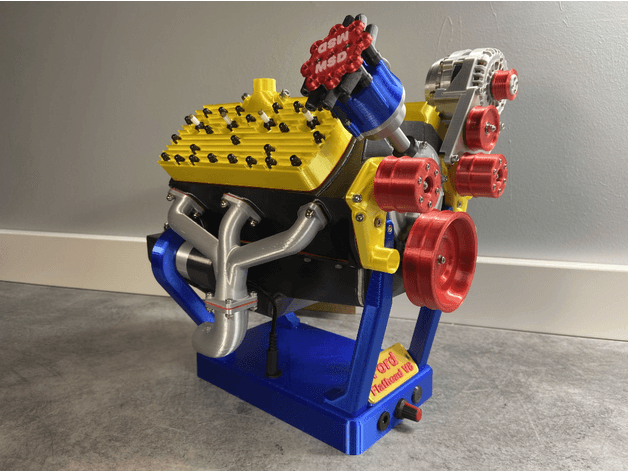

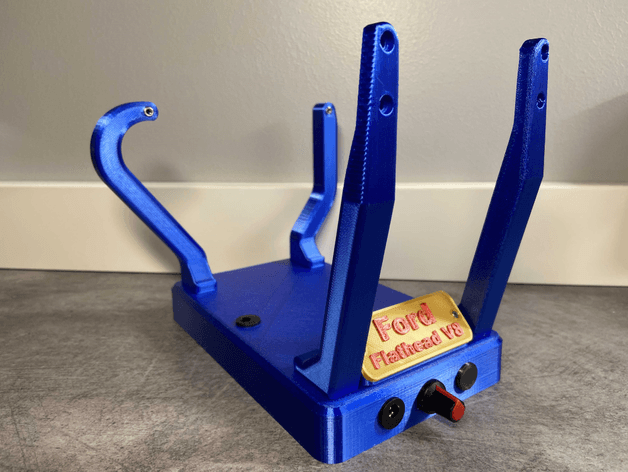

This is an Engine Stand extension for the Ford FlatHead V8 (https://www.thingiverse.com/thing:2537602). The mounting holes are already present on the engine block. # Print Settings 1 x EngineStandBackLeft: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandBackLeftSpacer: Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x EngineStandBackRight: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandBackRightSpacer: Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x EngineStandBottom: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandClasp: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandFrontLeft: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandFrontRight: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandLogo: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandLogoSupport: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% # Accessories 14 x m3 threaded insert 2 x m2x5mm SHCS 18 x m3x8mm SHCS 2 x m3x30mm SHCS 10 x m3 washer 2 x m3 jam nut 1 x electric wire (~20cm) 1 x variable speed controller: https://www.amazon.fr/gp/product/B07MPWGF7P/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1 2 x DC female panel mount jack: https://www.amazon.fr/gp/product/B07QPZTHDK/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1 # Mounting Look at pictures.
