Ram 1500 Fog Light Fix

0 downloads95 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA for durability and heat resistance

Saved part guidance

Strength start

20-30% infill for strength and minimal weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

UV/weather exposure — ASA is the starting point

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

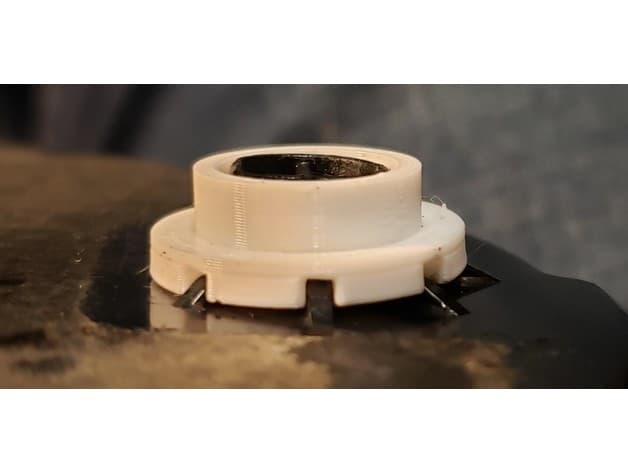

The Fog Lights on my 2016 Ram 1500 were rattling and moving to the point that the light beam was distracting as it jumped around. I have seen others who put a zip tie through the worn hole to snug things up but I didn't think that would help much for my truck. The pins on the lamp housing had worn through in one side. One of each file is needed to repair each lamp. They press on by hand with significant force. The angled one is for the side where the pin is not perpendicular to the housing surface. You need to make sure it is indexed properly (if it doesn't slide into place rotate it 45 degrees and try again). The holes in the bracket must be drilled out to 5/8" diameter.
