OVMS V3 Mount (Open Vehicle Monitoring System)

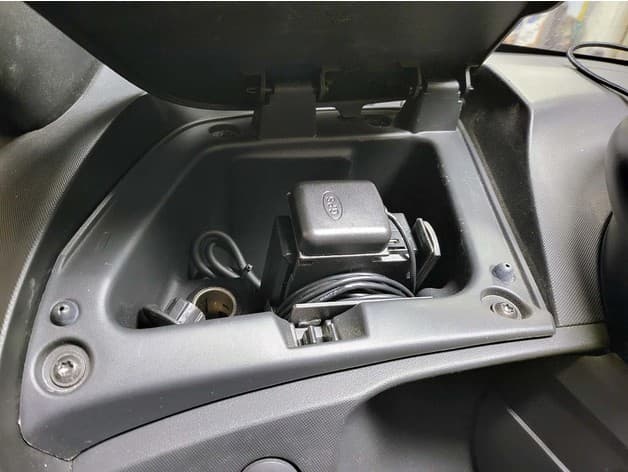

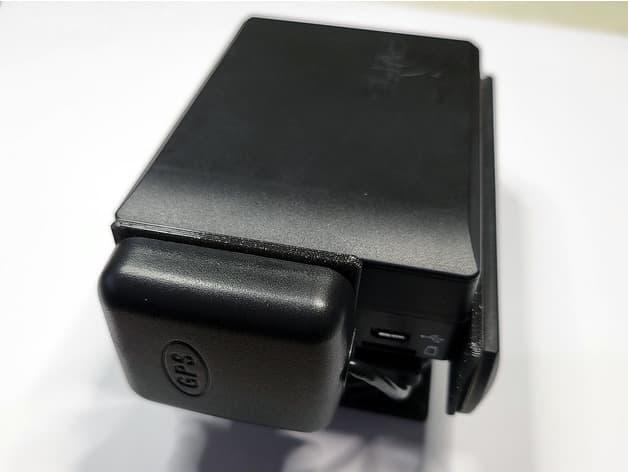

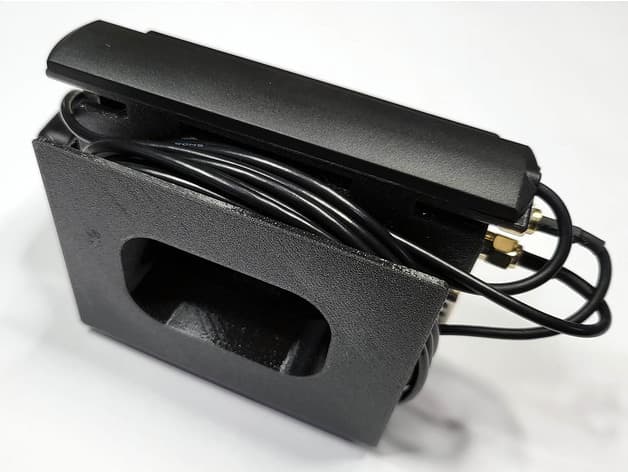

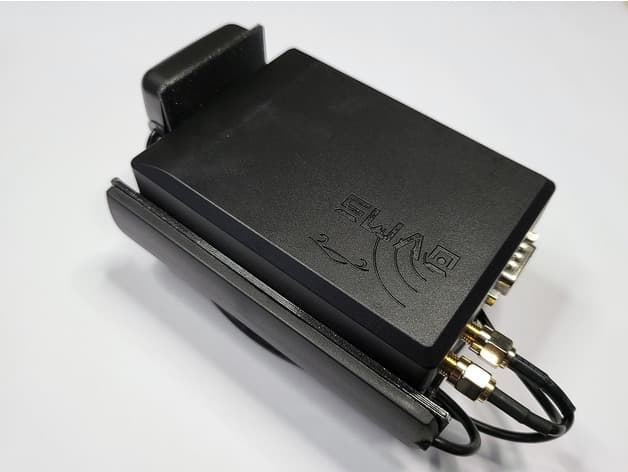

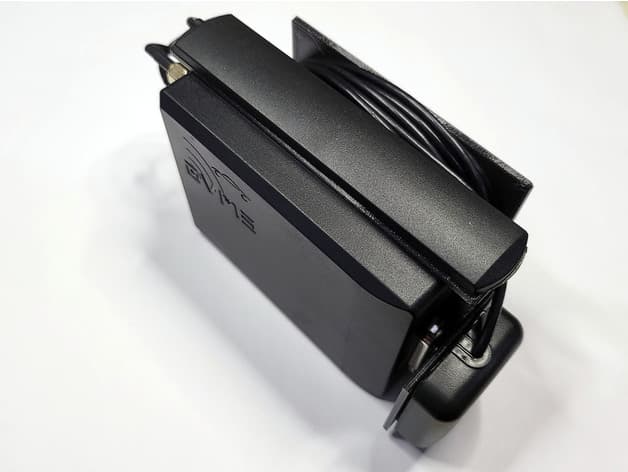

OVMS V3 Mount (Open Vehicle Monitoring System) ## Overview This project provides a mounting bracket for mounting the OVMS v3 module inside the left-hand glovebox of a Renault Twizy (although the design should work for many vehicles). The OVMS module is affixed into the blackplate and the GPS and Cellular antenna cables are wrapped around the included cable holder. All connectors on the OVMS module are accessible with the exception of the 'Diag.' port. This project is open-source. You can find the OpenSCAD source here: https://github.com/simoninns/ovms-v3-mount The OpenSCAD source also includes a mock-up of the actual OVMS module to make modification to the design easier. ## Printing instructions The model has been printed and tested on the Prusa MK3S/MMU2S printer using Prusament PETG filament. All parts fit on a 20x20 printing bed. ### Recommended print settings Print settings (for Prusa Slicer) are the same for all included parts: * Material: PETG * Layer: 0.30mm * Infill: 20% * Supports: No Supports # Assembly Start by clipping together the backplate and cable holder parts. The clips will be stiff, but apply pressure over the clip area until the parts snap together. The antennas should be affixed using double-sided tape. The OVMS module can also be held in place with double-sided tape. It is suggested to mock-up all the part (with the cable wrapped) to make sure everything is OK before sticking the parts in place. ## Author This project is designed and maintained by Simon Inns. # Licensing ## OpenSCAD source files - software license (GPLv3) This is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program. If not, see. ## Non-source-code media - Creative Commons license (Creative Commons BY-SA 4.0) Please see the following link for details: https://creativecommons.org/licenses/by-sa/4.0/ You are free to: Share - copy and redistribute the material in any medium or format Adapt - remix, transform, and build upon the material for any purpose, even commercially. This license is acceptable for Free Cultural Works. The licensor cannot revoke these freedoms as long as you follow the license terms. Under the following terms: Attribution - You must give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use. ShareAlike - If you remix, transform, or build upon the material, you must distribute your contributions under the same license as the original. No additional restrictions - You may not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
