Renault Twizy Speaker Mounts

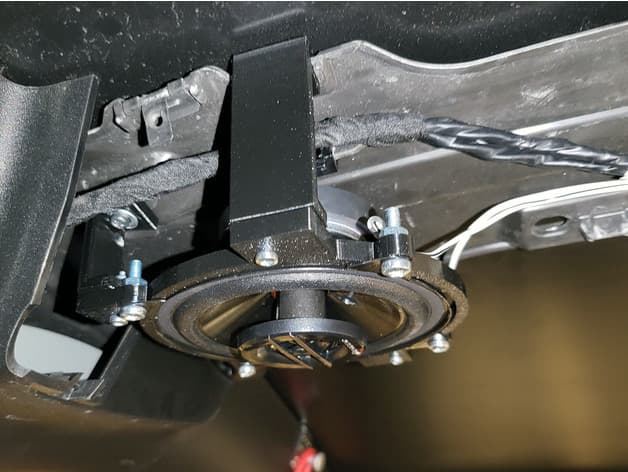

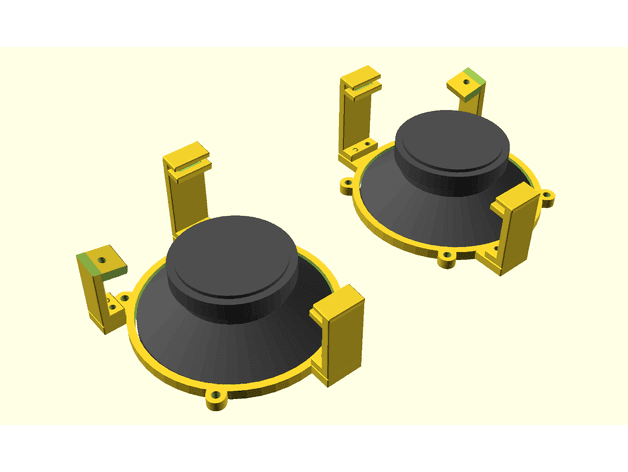

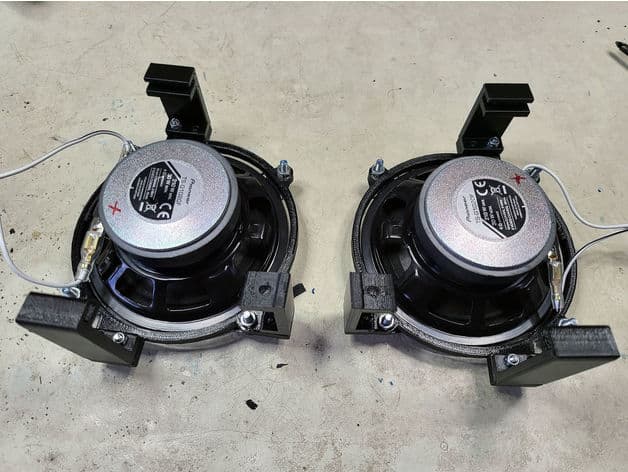

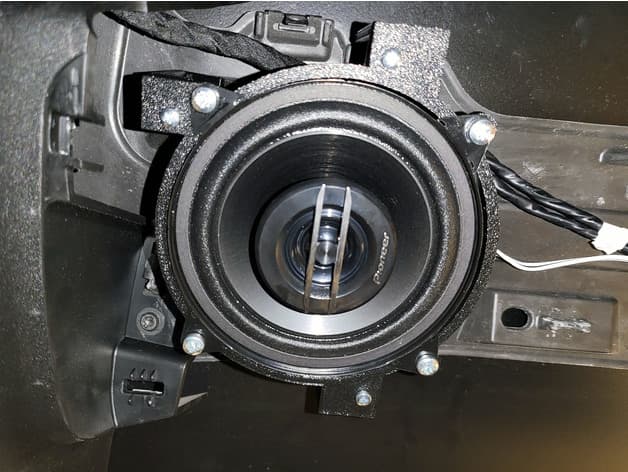

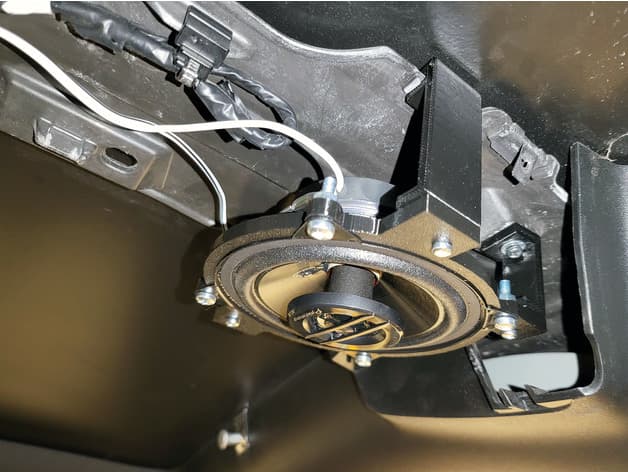

Renault Twizy Speaker Mounts ## Overview This project provides a set of speaker mounts for the Renault Twizy. The mounts are designed to fit 4 inch Pioneer TS-G1020F speakers and are mounted in the original bracket position in the roof of the car. This project is open-source. You can find the OpenSCAD source here: https://github.com/simoninns/renault-twizy-speaker-mounts ## Printing instructions The model has been printed and tested on the Prusa MK3S/MMU2S printer using Prusament PETG filament. All parts fit on a 20x20 printing bed. ### Recommended print settings Print settings (for Prusa Slicer) are the same for all included parts: * Material: PETG * Layer: 0.30mm * Infill: 25% * Supports: No Supports # Assembly Since the bracket will need to withstand vibration, ensure that you use either nylon lock-nuts or thread-lock for all screws. The clips are attached to the bracket using M3x16mm screws. The speaker is attached using 4xM4 screws. The screw-heads should be on the underside of the bracket. See the included pictures for more details. Note that the screw-clip has a different orientation on the left and right brackets. ## Author This project is designed and maintained by Simon Inns. # Licensing ## OpenSCAD source files - software license (GPLv3) This is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program. If not, see. ## Non-source-code media - Creative Commons license (Creative Commons BY-SA 4.0) Please see the following link for details: https://creativecommons.org/licenses/by-sa/4.0/ You are free to: Share - copy and redistribute the material in any medium or format Adapt - remix, transform, and build upon the material for any purpose, even commercially. This license is acceptable for Free Cultural Works. The licensor cannot revoke these freedoms as long as you follow the license terms. Under the following terms: Attribution - You must give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use. ShareAlike - If you remix, transform, or build upon the material, you must distribute your contributions under the same license as the original. No additional restrictions - You may not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
