Parrot MKi9200 Twizy Screen Enclosure

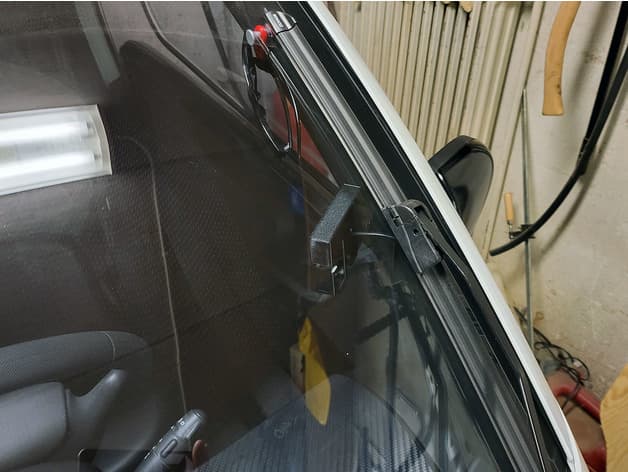

Parrot MKi9200 Twizy Screen Enclosure ## Overview This project provides a Parrot MKi9200 screen enclosure for mounting the LCD display in the Renault Twizy. The LCD is removable, but the original mount is flimsy and easily broken. This mount makes the display more perminant and provides better protection along with a more study mounting surface. This project is open-source. You can find the OpenSCAD source here: https://github.com/simoninns/Parrot-MKi9200-Twizy-Screen-Enclosure The OpenSCAD source also includes a mock-up of the actual display to make modification to the design easier. ## Printing instructions The model has been printed and tested on the Prusa MK3S/MMU2S printer using Prusament PETG filament. All parts fit on a 20x20 printing bed. ### Recommended print settings Print settings (for Prusa Slicer) are the same for all included parts: * Material: PETG * Layer: 0.30mm * Infill: 25% * Supports: No Supports # Assembly Connect the display the cable bracket and run the cable up the bracket towards the top of the LCD. Insert the display and bracket into the lower case part; it should push in firmly. Route the cable out of the back of the lower holder and push the upper case down onto the display. The two tabs at the back will lock into place holding the two case parts firmly together. Apply some double-sided foam mirror tape to the case and affix to the Renault Twizy. See the included pictures for the suggested mounting location. ## Author This project is designed and maintained by Simon Inns. # Licensing ## OpenSCAD source files - software license (GPLv3) This is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program. If not, see. ## Non-source-code media - Creative Commons license (Creative Commons BY-SA 4.0) Please see the following link for details: https://creativecommons.org/licenses/by-sa/4.0/ You are free to: Share - copy and redistribute the material in any medium or format Adapt - remix, transform, and build upon the material for any purpose, even commercially. This license is acceptable for Free Cultural Works. The licensor cannot revoke these freedoms as long as you follow the license terms. Under the following terms: Attribution - You must give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use. ShareAlike - If you remix, transform, or build upon the material, you must distribute your contributions under the same license as the original. No additional restrictions - You may not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
